Experiment
Title

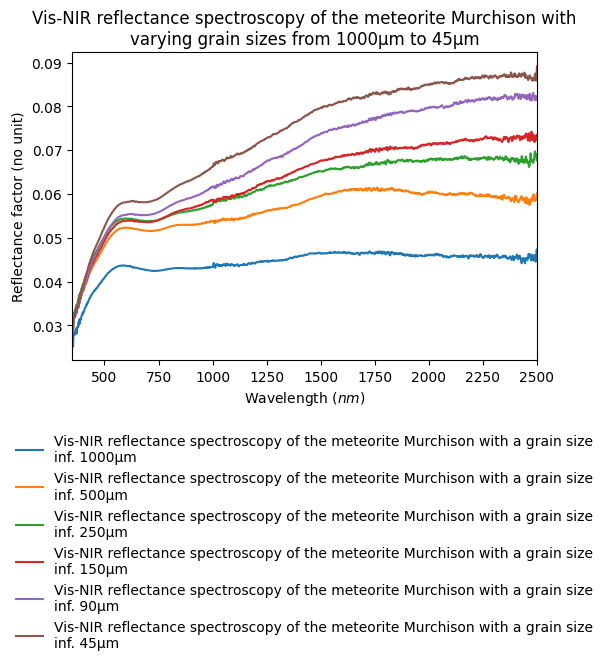

Vis-NIR reflectance spectroscopy of the meteorite Murchison with varying grain sizes from 1000µm to 45µm
DOI
10.26302/SSHADE/EXPERIMENT_SP_20210420_1000
Data reference
Cloutis, Edward; Applin, Daniel (2014): Vis-NIR reflectance spectroscopy of the meteorite Murchison with varying grain sizes from 1000µm to 45µm. SSHADE/CHIPS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SP_20210420_1000
Publications
Type(s)
laboratory measurement
Description
0.35 to 2.5µm reflectance spectroscopy of a powdered sample of the meteorite Murchison sieved to select grains sizes <1000µm, <500µm, <250µm, <150µm, <90µm and <45µm.
Number of spectra
6
Variable type(s)
  • sample grain size
Instrument
ASD reflection VIS-NIR
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
Vis, NIR
Valid spectral range(s)
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge
#1 350.0 - 2500.0 1.0
Observation geometry
conical-directional
Observation mode
fixed angles
Incidence angle
30.0°
Emergence angle
0.0°
Azimuth angle
0.0°
Phase angle
30.0°
Observation mode
single spot
Spatial resolution
5.0 $mm$
Date begin
2014-07-03

Versions

Release date
2021-04-22 14:45:05 UTC+0000
Version (Date)
#1 (2021-04-22 14:32:48 UTC+0000, Updated: 2021-04-22 14:45:05 UTC+0000)
