- DOI
- 10.26302/SSHADE/EXPERIMENT_SO_20141120_001
- Data reference

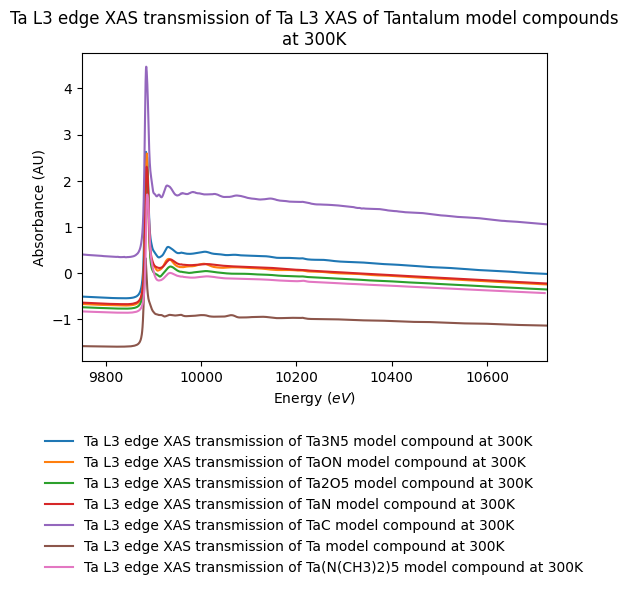

- Ould-Chikh, Samy; Hazemann, Isabelle (2014): Ta L3 edge XAS transmission of Ta L3 XAS of Tantalum model compounds at 300K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SO_20141120_001
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 7
- Comments
- These data were acquired on the BM30 beamline in the frame of the 30-02-1082 proposal.
- Variable type(s)
-
- sample composition
- Instrument
- X-ray Absorption Spectroscopy measured in transmission mode
- Sample holder
- under-vacuum sample-holder
- Standard medium
- unknown
- Observation mode
- spectrum
- Spectral range type(s)
- hard X
- Valid spectral range(s)
-
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge #1 9750.0 - 10725.0 0.507 $Ta$ (L3: 9.8811 $keV$) - Comments
- The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: Ta metallic foil (first maximum of the derivative set at 9881 eV).
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Observation mode
- single spot
- Date begin - end
- 2014-11-19 - 2014-11-26
Versions
- Release date
- 2026-03-06 14:28:16+0000 UTC
- Version (Date)
- #1 (2026-03-06 14:28:16+0000 UTC, Updated: 2026-03-06 14:28:16+0000 UTC)
