Experiment
Title
Fe K edge XAS HERFD (Kbeta1,3) and XES of synthetic iron(II) oxide FeO at ambient conditions
DOI
10.26302/SSHADE/EXPERIMENT_SOC_20181115_004
Data reference
Ould-Chikh, Samy; Vollmer, Ina; Aguilar Tapia, Antonio (2018): Fe K edge XAS HERFD (Kbeta1,3) and XES of synthetic iron(II) oxide FeO at ambient conditions. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SOC_20181115_004
Database(s)
Experimentalists

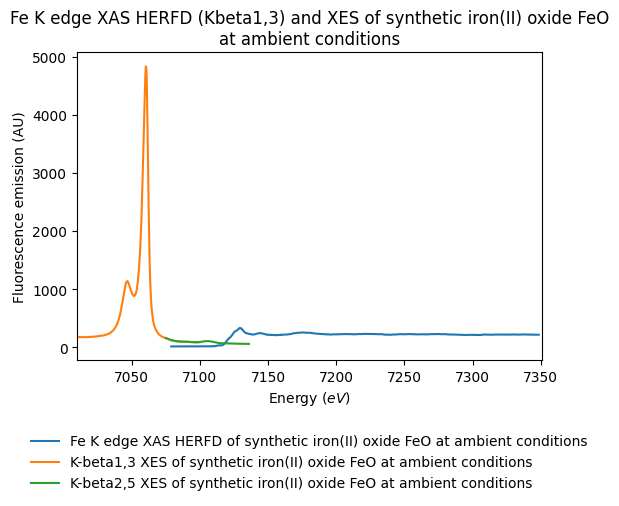

Spectra preview
Experiment type
Type(s)
laboratory measurement
Number of spectra
3
Variable type(s)
  • spectral range
Laboratory
French Absorption spectroscopy beamline in Material and Environmental science (FAME)
Instrument #1
Instrument
High Energy Resolution Fluorescence Detection X-ray Absorption Spectroscopy
Standard medium
unknown
Observation mode
spectrum
Spectral range type(s)
hard X
Valid spectral range(s)
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge
#1 7079.0 - 7351.0 0.36 $Fe$ (K: 7.112 $keV$)
#2 7010.0 - 7100.0
#3 7075.0 - 7136.0
Comments
The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the K edge spectrum of a reference Fe metallic foil (first maximum of the derivative set at 7112 eV). The resolution of the spectrometer was 2.4eV (FWHM of the elastic peak).
Observation mode
single spot
Date begin
2018-11-01

Versions

Release date
2018-11-19 16:24:05 UTC+0000
Version (Date)
#1 (2018-11-19 16:24:05 UTC+0000, Updated: 2018-11-20 14:23:23 UTC+0000)
