- Title
- Vis-NIR reflectance spectroscopy of the meteorite Murchison with varying incidence and emergence angles
- DOI
- 10.26302/SSHADE/EXPERIMENT_SM_20210422_90
- Data reference
- Cloutis, Edward; Applin, Daniel (2016): Vis-NIR reflectance spectroscopy of the meteorite Murchison with varying incidence and emergence angles. SSHADE/CHIPS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SM_20210422_90
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

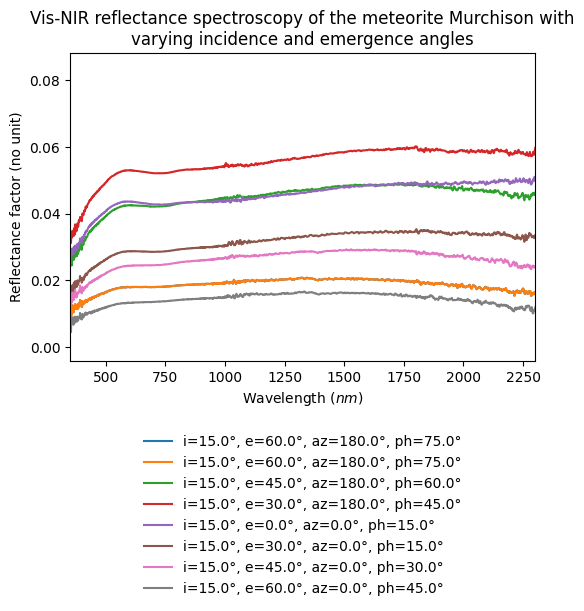

- 0.35 to 2.5µm reflectance spectroscopy of a crushed sample of the meteorite Murchison with grain size <90$\mu$m observed under varying geometries: incidence angle at 0°, 15°, 30°, 45°, and 60°; emergence angle from -60° to 60° by 15° steps.
- Number of spectra
- 1
- Variable type(s)
-
- incidence angle
- emergence angle
- Instrument
- ASD reflection VIS-NIR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- Vis, NIR
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 350.0 - 2300.0 1.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- conical-directional
- Observation mode
- two variable angles
- Observation mode
- single spot
- Spatial resolution
- 5.0 $mm$
- Date begin
- 2016-07-14
Versions
- Release date
- 2021-04-26 18:38:07 UTC+0000
- Version (Date)
- #1 (2021-04-26 18:38:07 UTC+0000, Updated: 2021-06-22 05:06:59 UTC+0000)
