Cd K edge XAS transmission of Cd metallic foil reference at ambient conditions | FAME

Experiment

Title: Cd K edge XAS transmission of Cd metallic foil reference at ambient conditions

References

DOI: 10.26302/SSHADE/EXPERIMENT_SH_20050103_001
Data reference: Huguet, Stéphanie; Isaure, Marie-Pierre; Sarret, Géraldine (2005): Cd K edge XAS transmission of Cd metallic foil reference at ambient conditions. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SH_20050103_001

Owner

Database(s)

FAME

Experimentalists

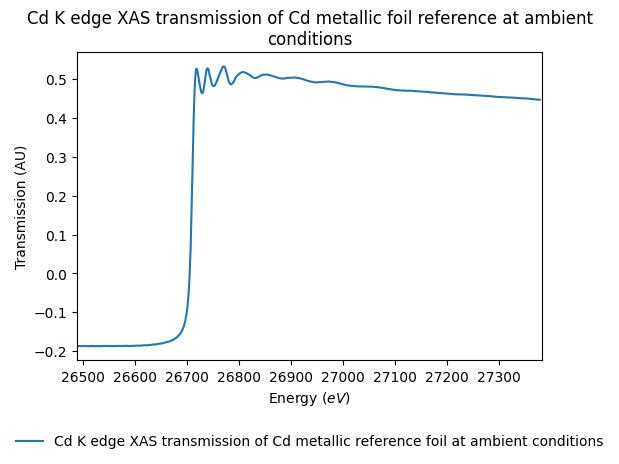

Spectra preview

Experiment type

Type(s): laboratory measurement
Number of spectra: 1

Variable parameters

Variable type(s)

Location

Laboratory: French Absorption spectroscopy beamline in Material and Environmental science (FAME)

Instrument #1

Instrument: X-ray Absorption Spectroscopy measured in transmission mode

Spectral parameters

Standard medium

unknown

Observation mode

spectrum

Spectral range type(s)

hard X

Valid spectral range(s)

	Min - Max ($eV$)	Sampling ($eV$)	Resolution ($eV$)	Position accuracy ($eV$)	Absorption edge
#1	26489.0 - 27383.0		1.37		$Cd$ (K: 26.7112 $keV$)

Comments

The resolution in the above table is the resolution given by the monochromator. The energy was calibrated on the spectrum itself: by definition, th first maximum of the derivative was set at 26711 eV.

Spatial parameters

Observation mode: single spot

History

Date begin: 2005-01-01

Versions

Release date: 2019-11-25 09:18:33 UTC+0000
Version (Date): #1 (2019-11-25 09:18:33 UTC+0000, Updated: 2019-11-25 09:18:33 UTC+0000)
