- DOI
- 10.26302/SSHADE/EXPERIMENT_SB_20210129_001
- Data reference
- Henning, Thomas; Mutschke, Harald (1995): T-dependent optical constants of FeO. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SB_20210129_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

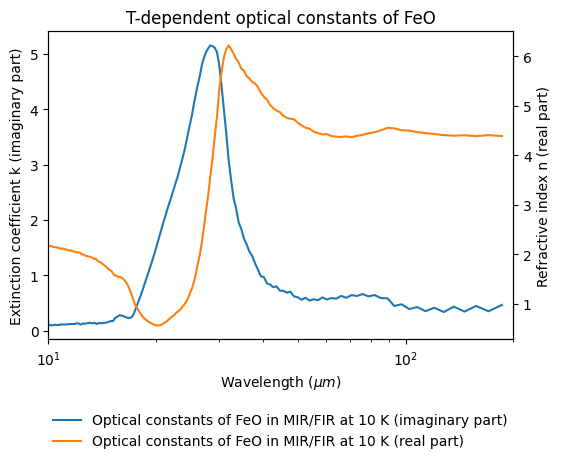

- Optical constants are obtained by reflectance measurements in a temperature range of 10 K to 300 K
- Number of spectra
- 4
- Variable type(s)
-
- temperature
- Instrument
- BRUKER 113v – reflection Mid-IR
- Sample holder
- Continuous-flow liquid helium cryostat (Cryovac) equipped with KRS5 infrared optical window (40 mm)
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge #1 10.0 - 25.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- specular
- Observation mode
- fixed angles
- Incidence angle
- 12.0°
- Emergence angle
- 12.0°
- Resolution illumination
- 6.0°
- Resolution observation
- 6.0°
- Observation mode
- single spot
- Spatial resolution
- 5.0 $mm$
- Instrument
- BRUKER 113v – reflection Far-IR with bolometer detector
- Sample holder
- Continuous-flow liquid helium cryostat (Cryovac) equipped with polyethylene infrared optical window (40 mm)
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- FIR
- Valid spectral range(s)
-
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge #1 15.0 - 500.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- specular
- Observation mode
- fixed angles
- Incidence angle
- 12.0°
- Emergence angle
- 12.0°
- Resolution illumination
- 6.0°
- Resolution observation
- 6.0°
- Observation mode
- single spot
- Spatial resolution
- 5.0 $mm$
- Date begin
- 1995-01-01
Versions
- Release date
- 2021-02-12 10:10:58+0000 UTC
- Version (Date)
- #1 (2021-02-12 10:10:58+0000 UTC, Updated: 2021-02-12 10:10:58+0000 UTC)
