Spectrum preview
Title

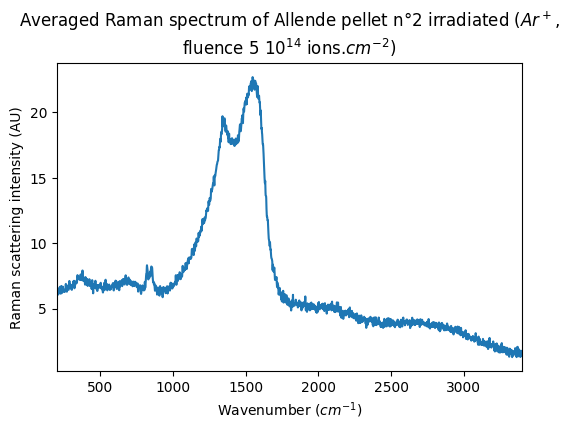

Averaged Raman spectrum of Allende pellet n°2 irradiated ($Ar^+$, fluence $5~10^{14}$ ions.$cm^{-2}$)
Database
Experiment type
laboratory measurement
Spectrum type
Raman scattering intensity
Version
#1 (2017-07-06 19:19:44 UTC+0000)
Instrument parameters
Instrument
Thermo DXR - Raman
Spectral observation mode
spectrum
Valid spectral range(s)
200.0 - 3400.0 $cm^{-1}$
Observation geometry
other geometry :
Angle observation mode
fixed angles
Spatial observation mode
averaged
Sample preview
Name
Pellet of Allende powder (n°2)
Texture
compact fine grained
Thickness
200.0 $\pm$ 100.0 ${\mu}m$
Temperature
300.0 $\pm$ 5.0 $K$
Irradiated by
  • atomic ions , 40.0 $keV.particle^{-1}$
References
Data reference
Brunetto, Rosario (2013): Ion irradiation ($He^+$, $Ar^+$) of an Allende meteorite pellet probed by Raman spectroscopy. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data.
