Spectrum preview
Title

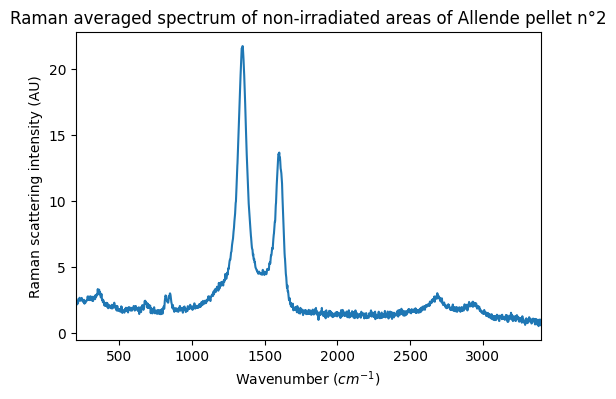

Raman averaged spectrum of non-irradiated areas of Allende pellet n°2
Database
Experiment type
laboratory measurement
Spectrum type
Raman scattering intensity
Version
#1 (2017-07-06 19:19:44+0000 UTC)
Instrument parameters
Instrument
Thermo DXR - Raman
Spectral observation mode
spectrum
Valid spectral range(s)
200.0 - 3400.0 cm1
Observation geometry
other geometry :
Angle observation mode
fixed angles
Spatial observation mode
averaged
Sample preview
Name
Pellet of Allende powder (n°2)
Texture
compact fine grained
Thickness
200.0 ± 100.0 μm
Temperature
300.0 ± 5.0 K
References
Data reference
Brunetto, Rosario (2013): Ion irradiation (He+, Ar+) of an Allende meteorite pellet probed by Raman spectroscopy. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_RB_20130101_001
