Spectrum preview
Title

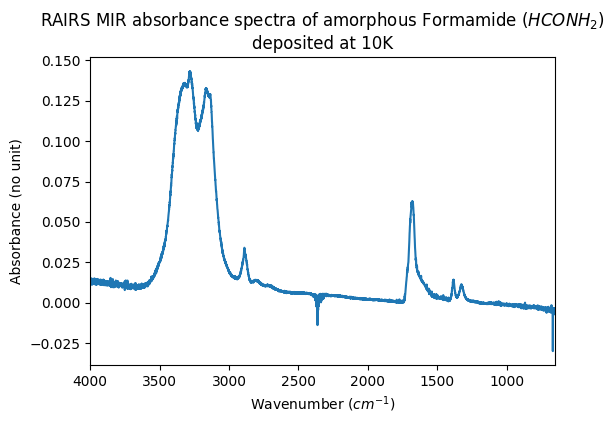

RAIRS MIR absorbance spectra of amorphous Formamide ($HCONH_2$) deposited at 10K
Database
Experiment type
laboratory measurement
Spectrum type
absorbance
Version
#1 (2017-11-10 14:24:05 UTC+0000)
Instrument parameters
Instrument
Nicolet Magna 750 Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
650.0 - 4000.0 $cm-1$
Observation geometry
other geometry : i=5.0° ; e=5.0° ; az=0.0° ; ph=1.49011611938477e-08°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Formamide (HCONH2) amorphous deposited at 10K
Origin
laboratory
Texture
compact glassy
Thickness
27.999999999999996 $\pm$ 19.999999999999996 $nm$
Temperature
10.0 $\pm$ 0.2 $K$
References
Data reference
Theulé, Patrice (2004): RAIRS MIR absorbance spectra of $HCONH_2$. SSHADE/MIA (OSUG Data Center). Dataset/Spectral Data.
