- Data reference

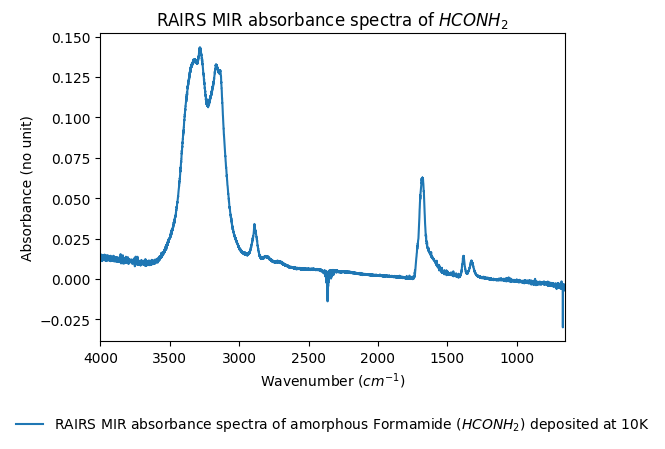

- Theulé, Patrice (2004): RAIRS MIR absorbance spectra of $HCONH_2$. SSHADE/MIA (OSUG Data Center). Dataset/Spectral Data.
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 1
- Variable type(s)
-
- no
- Instrument
- Nicolet Magna 750 Mid-IR
- Sample holder
- gold plated copper surface cooled by a model 21 CTI cold head within a high vacuum chamber
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 650.0 - 4000.0 0.48212 1.0 0.05
- Observation geometry
- other geometry
- Observation mode
- fixed angles
- Incidence angle
- 5.0°
- Emergence angle
- 5.0°
- Azimuth angle
- 0.0°
- Phase angle
- 1.49011611938477e-08°
- Comments
- Reflection absorption (RAIRS) geometry on a mirror
- Observation mode
- single spot
- Date begin
- 2004-11-04
Versions
- Release date
- 2018-01-31 23:51:01 UTC+0000
- Version (Date)
- #1 (2018-01-31 23:51:01 UTC+0000, Updated: 2019-05-17 06:26:08 UTC+0000)
