Mo K edge XAS transmission of molybdenum dioxyde MoO2 | FAME

Experiment

Title: Mo K edge XAS transmission of molybdenum dioxyde MoO2

References

DOI: 10.26302/SSHADE/EXPERIMENT_PA_20180702_001
Data reference: Afanasiev, Pavel; Aguilar Tapia, Antonio (2018): Mo K edge XAS transmission of molybdenum dioxyde MoO2. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_PA_20180702_001

Owner

Database(s)

FAME

Experimentalists

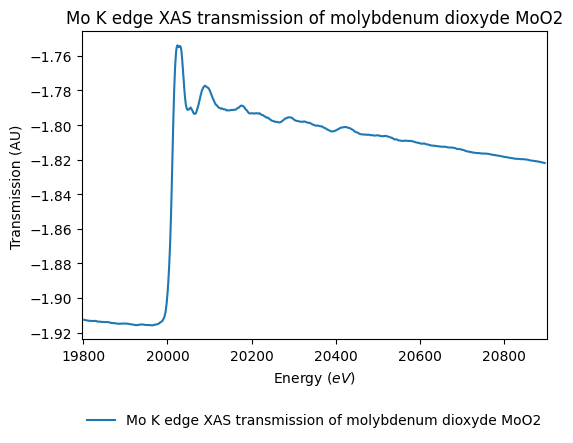

Spectra preview

Experiment type

Type(s): laboratory measurement
Number of spectra: 1

Variable parameters

Variable type(s)

Location

Laboratory: French Absorption spectroscopy beamline in Material and Environmental science (FAME)

Instrument #1

Instrument: X-ray Absorption Spectroscopy measured in transmission mode
Sample holder: simple holder

Spectral parameters

Standard medium

unknown

Observation mode

spectrum

Spectral range type(s)

hard X

Valid spectral range(s)

	Min - Max ( $eV$ )	Sampling ( $eV$ )	Resolution ( $eV$ )	Position accuracy ( $eV$ )	Absorption edge
#1	19797.0 - 20901.0		1.03		$Mo$ (K: 19.9995 $keV$ )

Comments

The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: Mo metallic foil (first maximum of the derivative set at 20000 eV).

Angular parameters

Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).

Observation geometry: direct
Observation mode: fixed angles

Spatial parameters

Observation mode: averaged

History

Date begin: 2018-07-02

Versions

Release date: 2019-12-16 15:01:58+0000 UTC
Version (Date): #1 (2019-12-16 15:01:58+0000 UTC, Updated: 2019-12-16 15:01:58+0000 UTC)
