Spectrum preview
Title

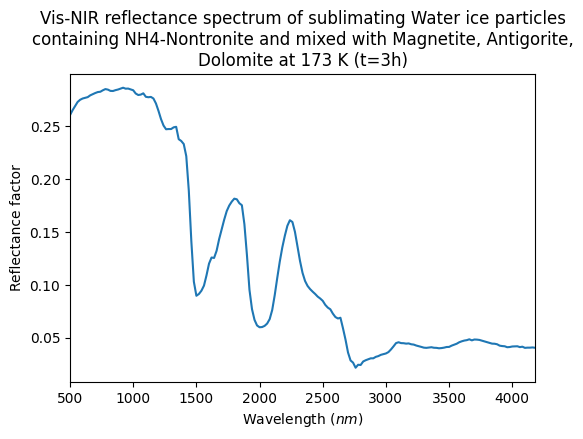

Vis-NIR reflectance spectrum of sublimating Water ice particles containing NH4-Nontronite and mixed with Magnetite, Antigorite, Dolomite at 173 K (t=3h)
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2020-06-26 09:24:51 UTC+0000)
Instrument parameters
Instrument
SHINE Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
500.0 - 660.0 $nm$ ; 680.0 - 1380.0 $nm$ ; 1400.0 - 2980.0 $nm$ ; 3000.0 - 4180.0 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Sublimation residue made of mineral mixture (Magnetite 63wt%, NH4-nontronite 22wt%, Antigorite 9wt%, Dolomite 6wt%) on Water ice particles 67±31μm mixed with 1wt% of the same mineral mixture at 173 K
Origin
laboratory
Texture
other, loose granular
Thickness
20.0 $\pm$ 1.0 $mm$
Temperature
173.0 $K$
Pressure
1.5e-06 $mbar$
Irradiated by
  • None
References
Data reference
Schroeder, Stefan; Poch, Olivier; Ferrari, Marco; DeAngelis, Simone (2019): Vis-NIR reflectance spectra of a mixture of Magnetite, NH4-Nontronite, Antigonite and Dolomite, pure, mixed with Water ice, during and after ice sublimation. SSHADE/CSS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20200623_001
Publications
