Spectrum preview
Title

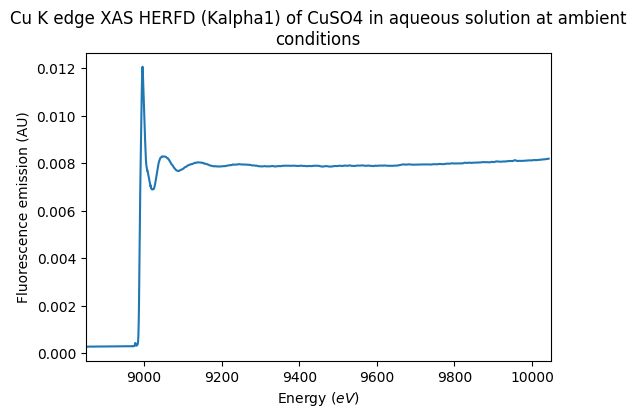

Cu K edge XAS HERFD (Kalpha1) of CuSO4 in aqueous solution at ambient conditions
Database
Spectrum type
fluorescence emission
Version
#1 (2018-07-19 11:08:34)
Instrument parameters
Instrument
BM30B HERFD Si[444]
Valid spectral range(s)
8850.0 - 10048.0 $eV$
Observation mode
single spot
Sample preview
Name
CuSO4.xH2O solution at ambient conditions
Origin
laboratory
Texture
liquid
Thickness
3.0 $\pm$ 0.1 $mm$
Temperature
293.0 $\pm$ 2.0 $K$
Pressure
1.0 $bar$
Irradiated by
  • None
