Cu K edge XAS HERFD (Kalpha1) of CuSO4 in aqueous solution at ambient conditions | FAME

Experiment

Title: Cu K edge XAS HERFD (Kalpha1) of CuSO4 in aqueous solution at ambient conditions

DOI

10.26302/SSHADE/EXPERIMENT_OP_20180717_003

Data reference

Proux, Olivier; Testemale, Denis; Hazemann, Jean-Louis (2009): Cu K edge XAS HERFD (Kalpha1) of CuSO4 in aqueous solution at ambient conditions. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20180717_003

Publications

Hazemann et al., 2009, J. Synchr. Rad., 16, 283 - 292

Owner

Database(s)

FAME

Experimentalists

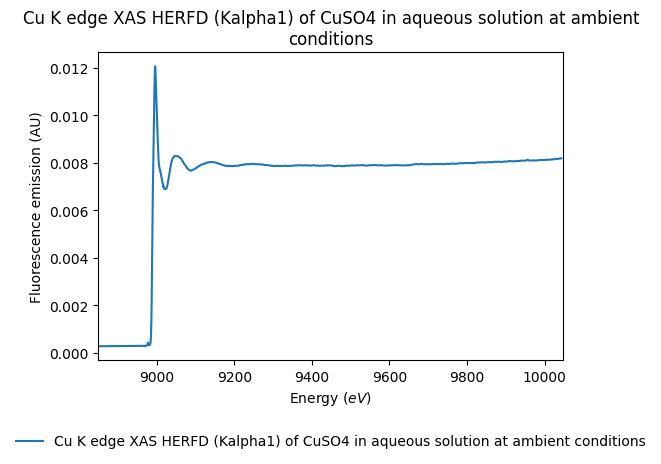

Spectra preview

Experiment type

Type(s): laboratory measurement
Number of spectra: 1

Variable parameters

Variable type(s)

Location

Laboratory: French Absorption spectroscopy beamline in Material and Environmental science (FAME)

Instrument #1

Instrument: High Energy Resolution Fluorescence Detection X-ray Absorption Spectroscopy

Spectral parameters

Standard medium

unknown

Observation mode

spectrum

Spectral range type(s)

hard X

Valid spectral range(s)

	Min - Max ( $eV$ )	Sampling ( $eV$ )	Resolution ( $eV$ )	Position accuracy ( $eV$ )	Absorption edge
#1	8850.0 - 10048.0		0.46		$Cu$ (K: 8.9878 $keV$ )

Comments

The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the K-edge spectrum of a reference Cu metallic foil (first maximum of the derivative set at 8979 eV). The energy resolution of the spectrometer was 1.3eV.

Spatial parameters

Observation mode: single spot

History

Date begin: 2009-09-01

Versions

Release date: 2018-07-19 11:54:32+0000 UTC
Version (Date): #1 (2018-07-19 11:54:32+0000 UTC, Updated: 2018-11-20 14:23:23+0000 UTC)
