- Title

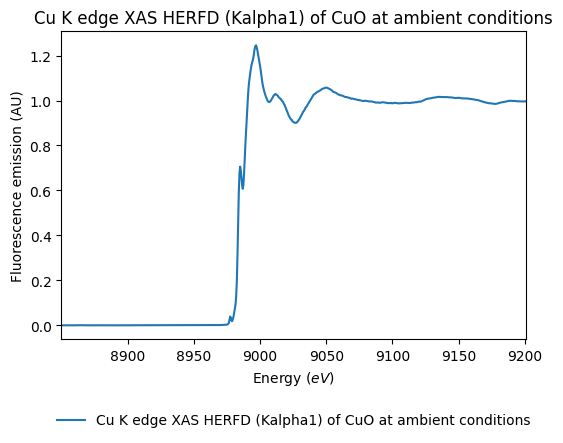

- Cu K edge XAS HERFD (Kalpha1) of CuO at ambient conditions
- Reference
- Proux, Olivier; Testemale, Denis; Hazemann, Jean-Louis (2009): Cu K edge XAS HERFD (Kalpha1) of CuO at ambient conditions. Version 1. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data.
- Database
-
- Experimentalists
-
- Type(s)
- laboratory
- Variable(s)
- no
- Number of spectra
- 1
- Instrument
-
BM30B HERFD Si[444]
- Standard medium
- unknown
- Spectral range type(s)
- hard X
- Valid spectral range(s)
-
|
Min - Max ($eV$) |
Sampling ($eV$) |
Resolution ($eV$) |
Position accuracy ($eV$) |
Absorption edge |
| #1 |
8850.0 - 9201.0
|
|
0.46 |
|
$Cu$
(K: $eV$)
|
- Comments
- The energy was calibrated by measuring the K-edge spectrum of a reference Cu metallic foil (first maximum of the derivative set at 8979 eV). The energy resolution of the spectrometer was 1.3eV.
- Observation mode
- single spot
