Experiment
Title

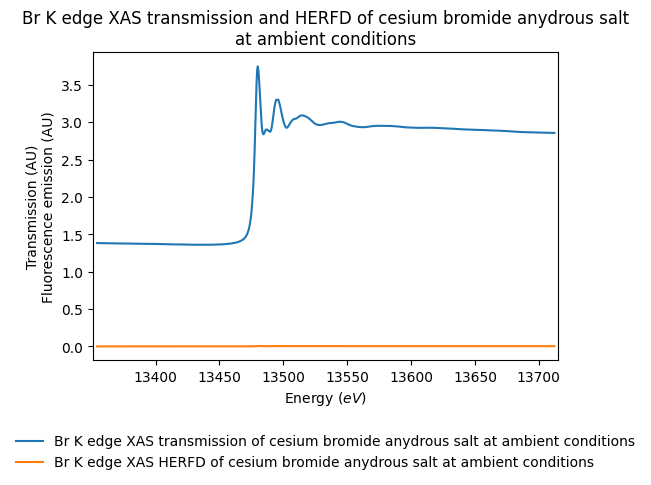

Br K edge XAS transmission and HERFD of cesium bromide anydrous salt at ambient conditions
Data reference
Proux, Olivier; Irar, Mohammed (2015): Br K edge XAS transmission and HERFD of cesium bromide anydrous salt at ambient conditions. Version 1. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data.
Publications
Type(s)
laboratory measurement
Variable(s)
observation mode
Number of spectra
2
Instrument
X-ray Absorption Spectroscopy measured in transmission mode
Standard medium
unknown
Observation mode
spectrum
Spectral range type(s)
hard X
Valid spectral range(s)
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge
#1 13351.0 - 13715.0 0.7 $Br$ (K: 14.3256 $keV$)
Comments
The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the L2 spectrum of a reference Pt metallic foil (first maximum of the derivative set at 13273 eV).
Observation mode
single spot
Instrument
High Energy Resolution Fluorescence Detection X-ray Absorption Spectroscopy
Standard medium
unknown
Observation mode
spectrum
Spectral range type(s)
hard X
Valid spectral range(s)
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge
#1 13351.0 - 13715.0 0.7 $Br$ (K: 14.3256 $keV$)
Comments
The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the L2 spectrum of a reference Pt metallic foil (first maximum of the derivative set at 13273 eV). The resolution was 2.7eV (FWHM of the elastic peak).
Observation mode
single spot
Variable type(s)
  • observation mode
Date begin
2015-09-03

Versions

Release date
2018-01-31 23:51:01 UTC+0000
Version (Date)
#1 (2018-01-17 11:21:09 UTC+0000, Updated: 2018-11-20 14:23:23 UTC+0000)
