Spectrum preview
Title

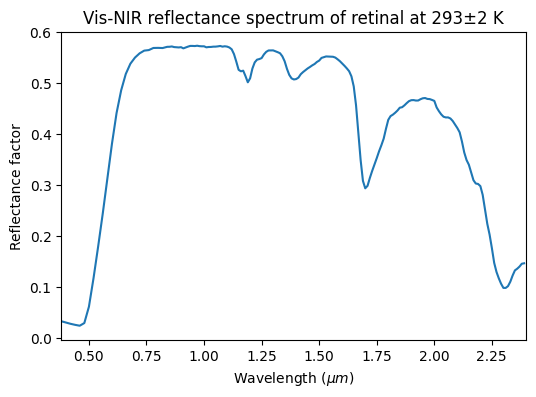

Vis-NIR reflectance spectrum of retinal at 293±2 K
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2018-01-20 23:09:59 UTC+0000)
Instrument parameters
Instrument
Hyperspectral imaging system Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
0.38 - 0.96 ${\mu}m$ ; 0.96 - 2.4 ${\mu}m$
Observation geometry
biconical : e=13.0° ; az=0.0°
Angle observation mode
fixed angles
Spatial observation mode
roi averaged
Sample preview
Name
Retinal
Texture
loose granular
Thickness
5.0 $\pm$ 2.0 $mm$
Temperature
293.0 $\pm$ 2.0 $K$
References
Data reference
Poch, Olivier (2014): Vis-NIR reflectance spectra of biomolecules dry powders at 293±2 K. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20180111_001
Publications
