- Instrument
- Hyperspectral imaging system Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 0.38 - 0.96 ${\mu}m$ ; 0.96 - 2.4 ${\mu}m$
- Observation geometry
- biconical : e=13.0° ; az=0.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- roi averaged
- Name

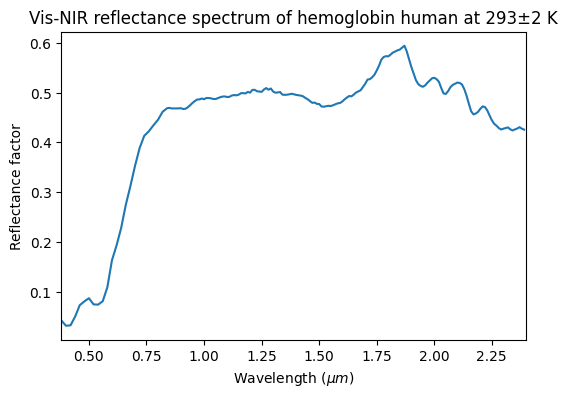

- Hemoglobin human
- Texture
- loose granular
- Thickness
- 5.0 $\pm$ 2.0 $mm$
- Temperature
- 293.0 $\pm$ 2.0 $K$
References
- Data reference
- Poch, Olivier (2014): Vis-NIR reflectance spectra of biomolecules dry powders at 293±2 K. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20180111_001
- Publications
