Spectrum preview
Title

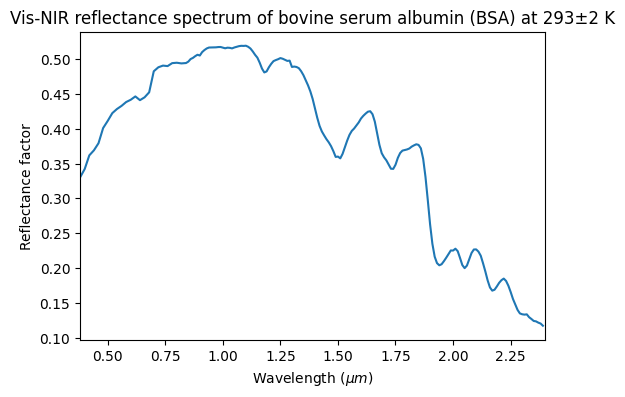

Vis-NIR reflectance spectrum of bovine serum albumin (BSA) at 293±2 K
Database
Spectrum type
reflectance
Version
#1 (2018-01-20 23:18:59)

You can paste the data VOTable URL directly into a VO-compliant software, ie. : (limited support)

-or-

Use SAMP protocol over TLS:

Notice : This requires SAMP TLS Hub to be launched on your computer. Right-click and save the file, then launch it with the following command :

java -jar tlshub.jar

Instrument parameters
Instrument
SCITEAS Imaging System
Valid spectral range(s)
0.38 - 0.96 micron ; 0.96 - 2.4 micron
Observation mode
roi averaged
Sample preview
Name
Powder of bovine serum albumin (BSA)
Origin
commercial
Texture
loose granular
Thickness
5.0 $\pm$ 2.0 $mm$
Temperature
293.0 $\pm$ 2.0 $K$
Pressure
1.0 $atm$
Irradiated by
  • None
  • None
