Se K edge XAS fluorescence of Se(0) reference | FAME

Experiment

Title: Se K edge XAS fluorescence of Se(0) reference

References

DOI: 10.26302/SSHADE/EXPERIMENT_OP_20170206_001
Data reference: Proux, Olivier (2017): Se K edge XAS fluorescence of Se(0) reference. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20170206_001

Owner

Database(s)

FAME

Experimentalists

Olivier Proux

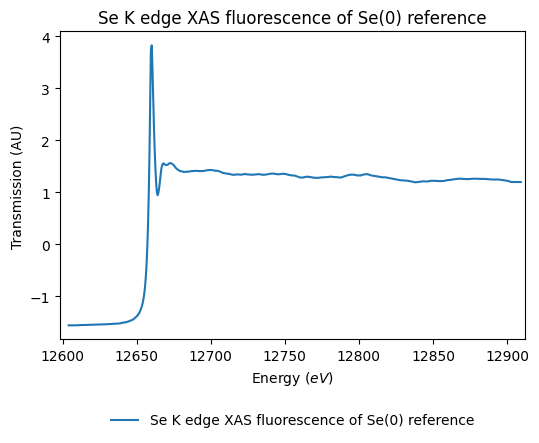

Spectra preview

Experiment type

Type(s): laboratory measurement
Number of spectra: 1
Comments: These data were acquired on the BM30 beamline in the frame of the EV-236 proposal.

Variable parameters

Variable type(s)

Location

Laboratory: French Absorption spectroscopy beamline in Material and Environmental science (FAME)

Instrument #1

Instrument: X-ray Absorption Spectroscopy measured in transmission mode
Sample holder: simple holder

Spectral parameters

Standard medium

unknown

Observation mode

spectrum

Spectral range type(s)

hard X

Valid spectral range(s)

	Min - Max ( $eV$ )	Sampling ( $eV$ )	Resolution ( $eV$ )	Position accuracy ( $eV$ )	Absorption edge
#1	12598.0 - 12912.0		0.649		$Se$ (K: 12.6578 $keV$ )

Comments

The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: Se metallic foil (mesh) (first maximum of the derivative set at 12658 eV).

Angular parameters

Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).

Observation geometry: direct
Observation mode: fixed angles

Spatial parameters

Observation mode: averaged

History

Date begin - end: 2017-02-06 - 2017-02-12

Versions

Release date: 2024-09-13 12:41:49+0000 UTC
Version (Date): #1 (2024-09-13 12:41:49+0000 UTC, Updated: 2024-09-13 12:41:49+0000 UTC)
