- Title

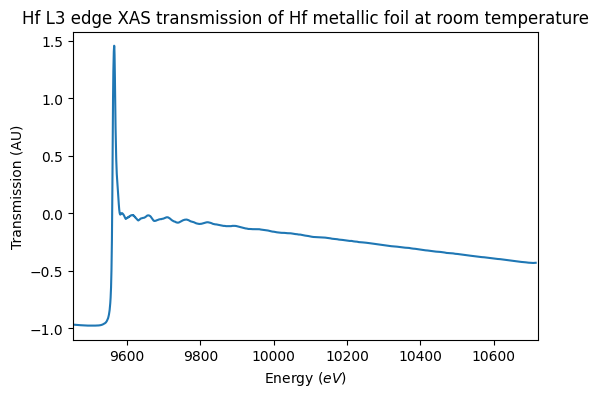

- Hf L3 edge XAS transmission of Hf metallic foil at room temperature
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2025-01-31 12:49:34+0000 UTC)
- Instrument
- X-ray Absorption Spectroscopy measured in transmission mode
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 9453.0 - 10720.0 eV
- Observation geometry
- direct :
- Angle observation mode
- fixed angles
- Spatial observation mode
- averaged
- Name
- Hf metallic foil
- Origin
- commercial
- Texture
- compact
- Temperature
- 300.0 ± 1.0 K
- Pressure
- 1.0 bar
References
- Data reference
- Proux, Olivier (2006): Hf L3 edge XAS transmission of Hf L3 edge XAS of Hf metal reference. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20060709_001
