- DOI
- 10.26302/SSHADE/EXPERIMENT_OP_20060709_001
- Data reference

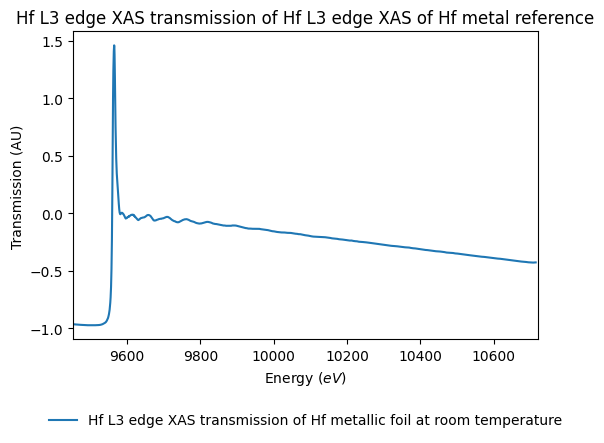

- Proux, Olivier (2006): Hf L3 edge XAS transmission of Hf L3 edge XAS of Hf metal reference. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20060709_001
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 1
- Comments
- These data were acquired on the BM30 beamline in the frame of the HD-57 proposal.
- Variable type(s)
-
- no
- Instrument
- X-ray Absorption Spectroscopy measured in transmission mode
- Sample holder
- simple holder
- Standard medium
- unknown
- Observation mode
- spectrum
- Spectral range type(s)
- hard X
- Valid spectral range(s)
-
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge #1 9453.0 - 10720.0 0.49 $Hf$ (L3: 9.5607 $keV$) - Comments
- The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: Hf metallic foil (first maximum of the derivative set at 9561 eV).
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Observation mode
- averaged
- Date begin - end
- 2006-07-09 - 2006-07-14
Versions
- Release date
- 2025-01-31 13:04:03 UTC+0000
- Version (Date)
- #1 (2025-01-31 13:04:03 UTC+0000, Updated: 2025-01-31 13:04:03 UTC+0000)
