- DOI
- 10.26302/SSHADE/EXPERIMENT_NC_20181214_001
- Data reference
- Mathé, Christophe (2016): Mid-IR spectra of Tholins synthesized from N2:CH4 with traces of pyridine gas. SSHADE/SPAN (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_NC_20181214_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

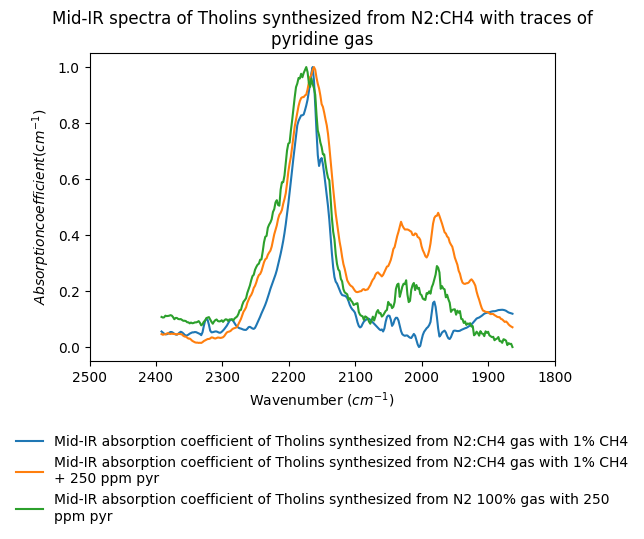

- Mid-IR absorption spectra for a set of Tholins films synthetized by plasma discharge in N2:CH4 gas mixtures with traces of pyridine
- Number of spectra
- 3
- Variable type(s)
-
- sample composition
- Comments
- Variation of the amount of pyridine during tholins synthesis
- Instrument
- FTIR-ATR-MIR
- Standard medium
- air
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 1800.0 - 2500.0 1.0 2.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- specular
- Observation mode
- fixed angles
- Observation mode
- averaged
- Spots number
- 1
- Date begin - end
- 2016-01-31 - 2016-12-31
Versions
- Release date
- 2018-12-17 12:09:51 UTC+0000
- Version (Date)
- #1 (2018-12-17 12:09:51 UTC+0000, Updated: 2021-05-02 14:19:12 UTC+0000)
