- DOI
- 10.26302/SSHADE/EXPERIMENT_MR_20241002_001
- Data reference

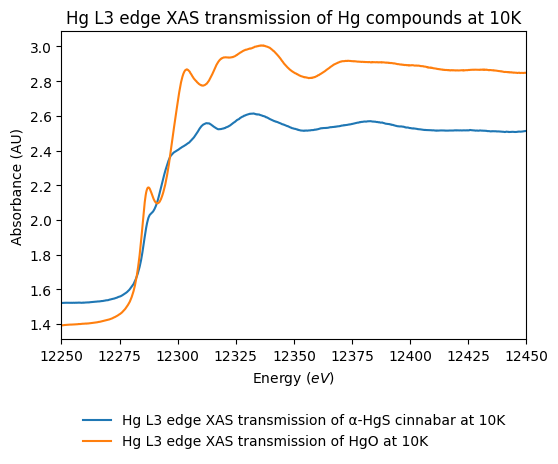

- Rovezzi, Mauro; Isaure, Marie-Pierre; Le Gohalen, Antoine (2024): Hg L3 edge XAS transmission of Hg compounds at 10K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_MR_20241002_001
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 2
- Comments
- These data were acquired on the BM16 beamline in the frame of the a16-1-837 proposal.
- Variable type(s)
-
- sample composition
- Instrument
- X-ray Absorption Spectroscopy measured in transmission mode
- Sample holder
- ESRF helium mini-cryostat
- Standard medium
- unknown
- Observation mode
- spectrum
- Spectral range type(s)
- hard X
- Valid spectral range(s)
-
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge #1 12250.0 - 12450.0 0.63 $Hg$ (L3: 12.2839 $keV$) - Comments
- The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: Se metallic foil (mesh) (first maximum of the derivative set at 12658 eV).
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Observation mode
- averaged
- Date begin - end
- 2024-10-02 - 2024-10-09
Versions
- Release date
- 2025-03-18 10:05:24+0000 UTC
- Version (Date)
- #1 (2025-03-18 10:05:24+0000 UTC, Updated: 2025-03-18 10:05:24+0000 UTC)
