Ti K edge XAS fluorescence of Ti oxides at 300K | FAME

Experiment

Title: Ti K edge XAS fluorescence of Ti oxides at 300K

References

DOI: 10.26302/SSHADE/EXPERIMENT_LL_20110727_001
Data reference: Laversenne, Laetitia (2011): Ti K edge XAS fluorescence of Ti oxides at 300K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LL_20110727_001

Owner

Database(s)

FAME

Experimentalists

Laetitia Laversenne

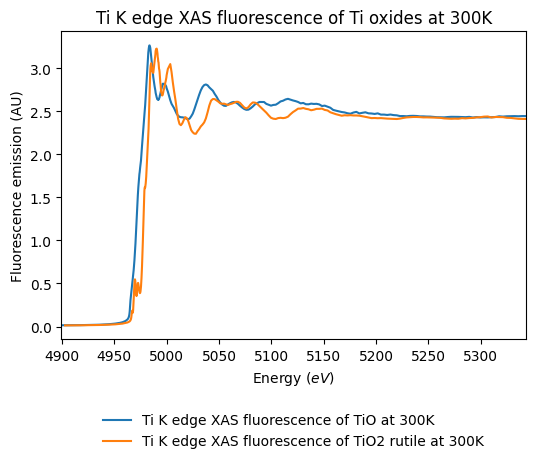

Spectra preview

Experiment type

Type(s): laboratory measurement
Number of spectra: 2
Comments: These data were acquired on the BM30 beamline in the frame of the proposal.

Variable parameters

Variable type(s)

sample composition

Location

Laboratory: French Absorption spectroscopy beamline in Material and Environmental science (FAME)

Instrument #1

Instrument: X-ray Absorption Spectroscopy measured in fluorescence mode
Sample holder: simple holder

Spectral parameters

Standard medium

unknown

Observation mode

spectrum

Spectral range type(s)

hard X

Valid spectral range(s)

	Min - Max ( $eV$ )	Sampling ( $eV$ )	Resolution ( $eV$ )	Position accuracy ( $eV$ )	Absorption edge
#1	4899.41 - 5343.5		0.255		$Ti$ (K: 4.9664 $keV$ )

Comments

The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: Ti metallic foil (first maximum of the derivative set at 4966 eV).

Angular parameters

Definition: emergence angle is positive with origin at nadir. Azimuth origin (increasing clockwise) is arbitrary.

Observation geometry: directional
Observation mode: fixed angles

Comments: Emitted x-rays are collected in a solid angle directed at 90 degrees from the incident beam.

Spatial parameters

Observation mode: single spot

History

Date begin - end: 2011-07-20 - 2011-07-27

Versions

Release date: 2024-09-30 15:08:39+0000 UTC
Version (Date): #1 (2024-09-30 15:08:39+0000 UTC, Updated: 2024-09-30 15:08:39+0000 UTC)
