- Title

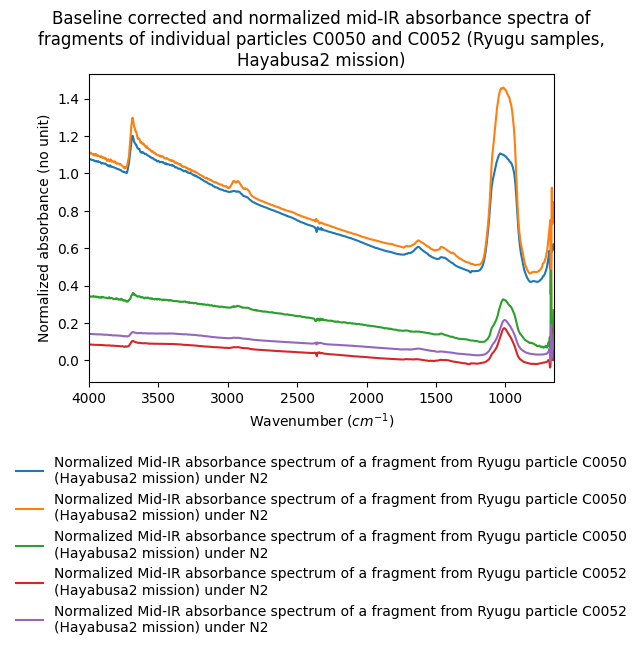

- Baseline corrected and normalized mid-IR absorbance spectra of fragments of individual particles C0050 and C0052 (Ryugu samples, Hayabusa2 mission)
- DOI
- 10.26302/SSHADE/EXPERIMENT_LB_20241122_002
- Data reference
- Vacher, Lionel; Phan Thai, Hai Van (2022): Baseline corrected and normalized mid-IR absorbance spectra of fragments of individual particles C0050 and C0052 (Ryugu samples, Hayabusa2 mission). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20241122_002
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description
- Mid-IR absorbance spectra obtained from micro-transmission measurements of several fragments of individual particles from Ryugu Chamber C samples (Hayabusa2 mission): particles C0050 and C0052
- Number of spectra
- 81
- Variable type(s)
-
- sample composition
- other
- Comments
- some measurements were either made under N2 conditions or ambient air
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max (cm−1) Sampling (cm−1) Resolution (cm−1) Position accuracy (cm−1) Absorption edge #1 650.0 - 4000.0 1.93 4.0 0.5
- Observation mode
- single spot
- Objective type
- x15
- Pixels number
- 1 x 1
- Image size
- 50.0 x 50.0 μm
- Comments
- the typical size of the spot onto the sample was between 50 x 50 and 100 x 100 µm^2.
- Date begin
- 2022-09-01
Versions
- Release date
- 2025-06-19 15:18:12+0000 UTC
- Version (Date)
- #1 (2025-06-19 15:18:12+0000 UTC, Updated: 2025-06-19 15:18:12+0000 UTC)
- Sponsors
-
- None (CNES Progamme "Système Solaire")
