- Title

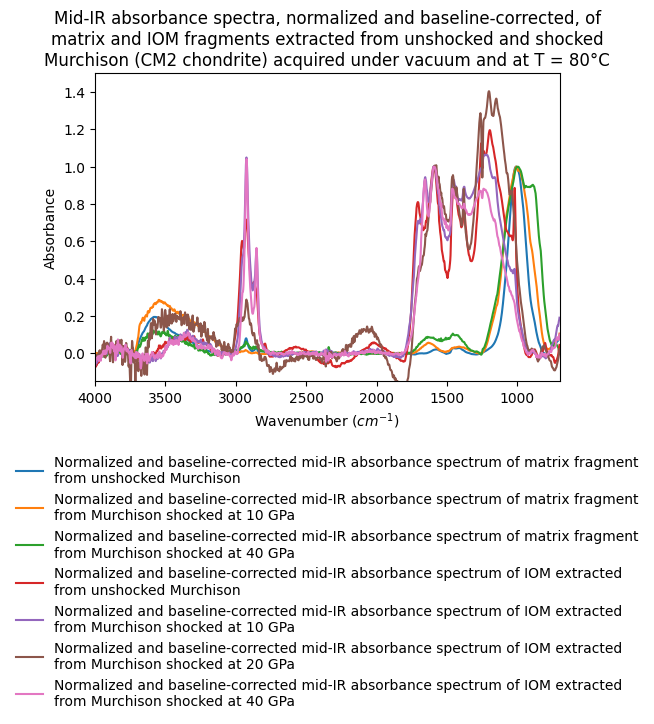

- Mid-IR absorbance spectra, normalized and baseline-corrected, of matrix and IOM fragments extracted from unshocked and shocked Murchison (CM2 chondrite) acquired under vacuum and at T = 80°C
- DOI
- 10.26302/SSHADE/EXPERIMENT_LB_20240821_001
- Data reference
- Quirico, Eric (2010): Mid-IR absorbance spectra, normalized and baseline-corrected, of matrix and IOM fragments extracted from unshocked and shocked Murchison (CM2 chondrite) acquired under vacuum and at T = 80°C. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20240821_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description
- Normalized Mid-IR absorbance spectra (baseline corrected) of matrix and IOM fragments extracted from unshocked and shocked (at 5, 10, 20 and 40 GPa) Murchison (CM2 chondrite) acquired under vacuum and at T = 80°C
- Number of spectra
- 15
- Variable type(s)
-
- sample composition
- Instrument
- Brucker Vertex 70 + Hyperion 3000 – micro-transmission Near-IR
- Sample holder
- The diamond windows were loaded into a cell, enabling temperature up to 300°C and controlled pressure (from 10-4 mbar down to 10-7 mbar). Optical access is permitted from both sides of the cell through KBr windows, thus enabling measurements in transmission.
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 600.0 - 4000.0 4.0 0.05
- Observation mode
- single spot
- Spots number
- 1
- Objective type
- x15
- Pixels number
- 1 x 1
- Image size
- 40.0 x 40.0 ${\mu}m$
- Spatial resolution
- 3.0 ${\pm}$ 1.0 ${\mu}m$
- Comments
- the typical size of the spot on the sample was 40 x 40 µm²
- Date begin
- 2010-01-01
Versions
- Release date
- 2025-03-06 16:17:54 UTC+0000
- Version (Date)
- #1 (2025-03-06 16:17:54 UTC+0000, Updated: 2025-03-06 16:17:54 UTC+0000)
- Sponsors
-
- CNES - section Système Solaire (CNES)
