- Title

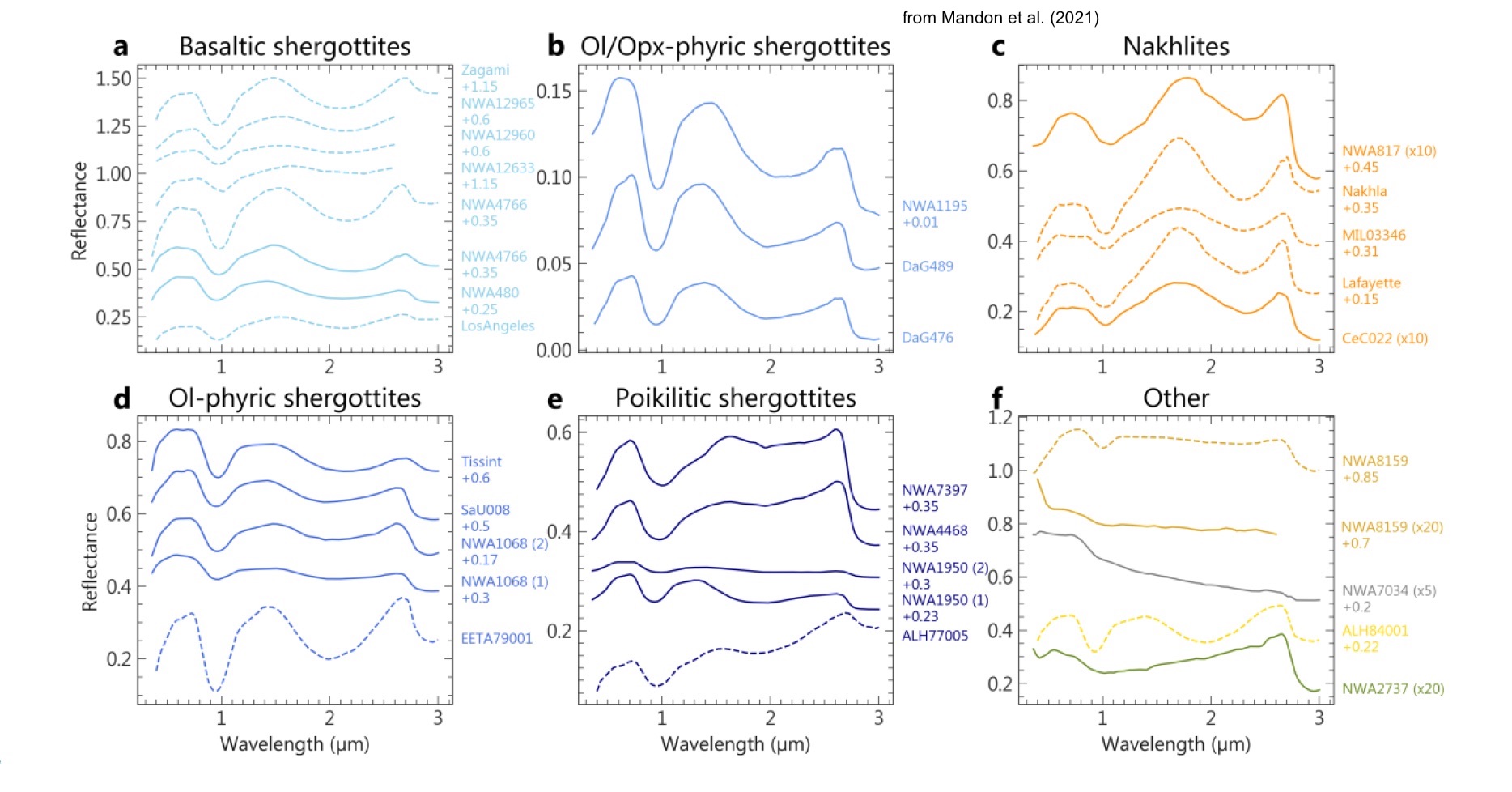

- Vis-IR reflectance spectra (i=0°, e=30°, az=0°) of bulk (powders or raw pieces) Martian meteorites
- DOI
- 10.26302/SSHADE/EXPERIMENT_LB_20210512_001
- Data reference
- Mandon, Lucia; Beck, Pierre (2018): Vis-IR reflectance spectra (i=0°, e=30°, az=0°) of bulk (powders or raw pieces) Martian meteorites. SSHADE/ROMA+GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20210512_001
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description
- Vis-IR reflectance spectra (i=0°, e=30°, az=0°) of bulk (powders or raw pieces) Martian meteorites (6 basaltic shergottites + 4 phyric shergottites + 4 poikilitic shergottites + 3 Opx-phyric shergottites + 5 Nakhlites + 1 chassignite + 1 Orthopyroxenite + 1 augite-rich basalt and 1 breccia)
- Number of spectra
- 28
- Variable type(s)
-
- sample composition
- Instrument
- SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
- Sample holder
- open sample holder (13 mm diameter, 2 mm deep) in anodized aluminum (not blackened) for powders and flat sample holder in anodized aluminum for rocks
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- Vis, NIR
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 360.0 - 600.0 20.0 4.8 #2 700.0 - 1400.0 20.0 8.0 #3 1500.0 - 3000.0 20.0 4.0 - Comments
- measurements over the 360 - 3000 nm range
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- bidirectional
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 30.0°
- Azimuth angle
- 0.0°
- Phase angle
- 30.0°
- Resolution illumination
- 2.9°
- Resolution observation
- 2.05°
Illumination
Observation
- Comments
- partial polarization variable with wavelength (from monochromator grating)
- Observation mode
- single spot
- Image size
- 5.2 x 5.2 $mm$
- Date begin
- 2018-04-01
Versions
- Release date
- 2021-05-19 14:00:08 UTC+0000
- Version (Date)
- #1 (2021-05-19 14:00:08 UTC+0000, Updated: 2021-10-09 19:42:03 UTC+0000)
