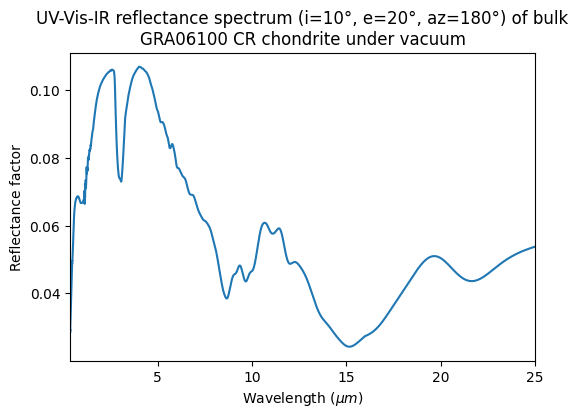

Spectrum preview
Title
UV-Vis-IR reflectance spectrum (i=10°, e=20°, az=180°) of bulk GRA06100 CR chondrite under vacuum
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2020-01-08 12:51:56+0000 UTC)
Instrument parameters
Instrument
Brucker Vertex 80V - UV-Vis-IR reflection
Spectral observation mode
spectrum
Valid spectral range(s)
0.3 - 0.5 ; 0.5 - 1.1 ; 1.1 - 200.0
Observation geometry
bidirectional : i=10.0° ; e=20.0° ; az=180.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
powder of bulk GRA06100 CR chondrite
Texture
loose granular
Thickness
1.0 0.1
Temperature
297.0 1.0
References
Data reference
Beck, Pierre; Garenne, Alexandre; Maturilli, Alessandro (2017): UV-Vis-IR reflectance spectra (i=10°, e=20°, az=180°) of bulk CM and CR chondrites under vacuum. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20200108_001
