Experiment
Title
Fe K edge XAS transmission of bulk heated CM carbonaceous chondrites
DOI
10.26302/SSHADE/EXPERIMENT_LB_20191211_002
Data reference
Garenne, Alexandre; Bonal, Lydie; Beck, Pierre; Proux, Olivier (2013): Fe K edge XAS transmission of bulk heated CM carbonaceous chondrites. SSHADE/GhoSST+FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20191211_002
Publications
Type(s)
laboratory measurement
Description

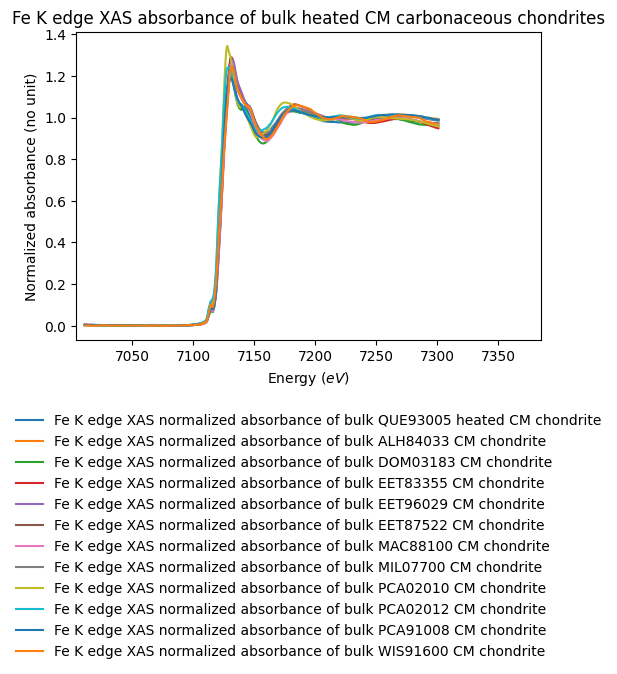

raw and normalized Fe K edge XAS transmission of bulk heated CM carbonaceous chondrites
Variable(s)
sample composition, spectrum type
Number of spectra
24
Instrument
X-ray Absorption Spectroscopy measured in transmission mode
Sample holder
simple holder
Standard medium
unknown
Observation mode
spectrum
Spectral range type(s)
hard X
Valid spectral range(s)
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge
#1 7004.0 - 7385.0 0.365 $Fe$ (K: 7.112 $keV$)
Comments
The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: Fe metallic foil (first maximum of the derivative set at 7112 eV). The resolution of the spectrometer analyser was 0,365 eV (FWHM of the elastic peak).
Observation geometry
direct
Observation mode
fixed angles
Observation mode
single spot
Variable type(s)
  • sample composition
  • spectrum type
Date begin - end
2013-09-02 - 2013-09-06

Versions

Release date
2020-01-13 08:55:26 UTC+0000
Version (Date)
#2 (2020-01-13 08:55:26 UTC+0000, Updated: 2020-01-14 08:59:42 UTC+0000)
Older version(s)
