Spectrum preview
Title

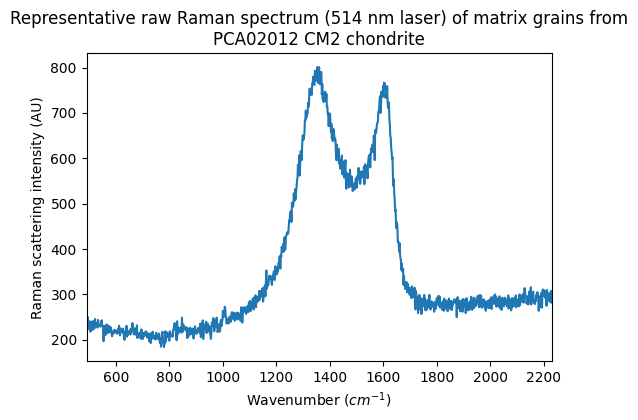

Representative raw Raman spectrum (514 nm laser) of matrix grains from PCA02012 CM2 chondrite
Database
Spectrum type
Raman scattering
Version
#1 (2018-07-19 16:09:36)
Instrument parameters
Instrument
labRAM HR800 Horiba Jobin-Yvon
Valid spectral range(s)
490.0 - 2230.0 $cm^{-1}$
Observation mode
single spot
Sample preview
Name
PCA02012_514 matrix grains
Origin
extraterrestrial
Texture
individual grains
Thickness
10.0 $\pm$ 10.0 ${\mu}m$
Temperature
22.0 $\pm$ 2.0 $C$
Pressure
1.0 $\pm$ 0.1 $atm$
Irradiated by
  • Vis photons , 3.87e-19 $J.particle^{-1}$
