Spectrum preview
Title

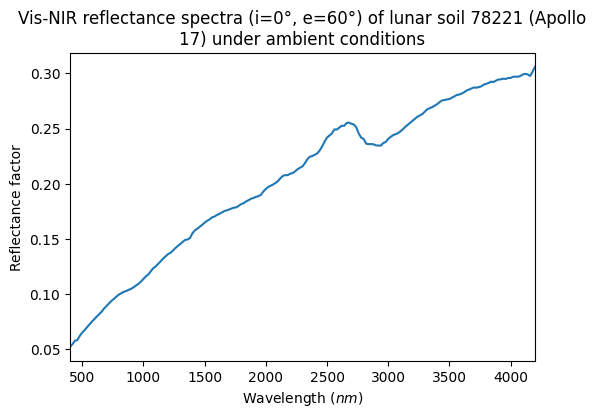

Vis-NIR reflectance spectra (i=0°, e=60°) of lunar soil 78221 (Apollo 17) under ambient conditions
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2018-05-04 11:46:46 UTC+0000)
Instrument parameters
Instrument
SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
400.0 - 660.0 $nm$ ; 680.0 - 1480.0 $nm$ ; 1500.0 - 2980.0 $nm$ ; 3000.0 - 4200.0 $nm$
Observation geometry
bidirectional : i=0.0° ; e=60.0° ; az=0.0° ; ph=60.0°
Angle observation mode
one variable angle
Spatial observation mode
single spot
Sample preview
Name
raw lunar soil 78221
Texture
loose granular
Thickness
1.0 $\pm$ 0.1 $mm$
Temperature
23.0 $\pm$ 2.0 $^{\circ}C$
References
Data reference
Beck, Pierre; Potin, Sandra (2018): Vis-NIR reflectance spectra (i=0°, e=30° and 60°) of 4 lunar soils (Appolo 15, 16, 17) under ambient conditions. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20180503_001
