- Title

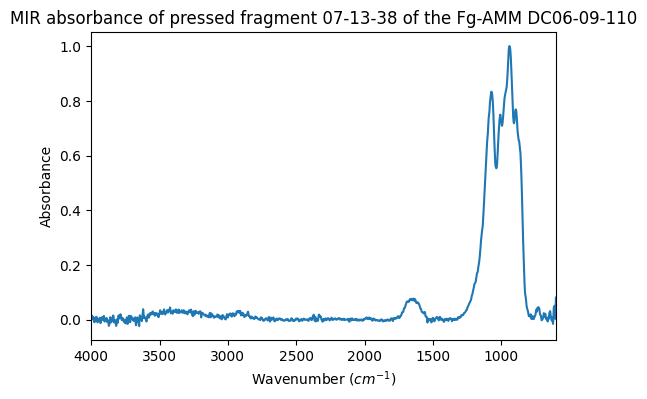

- MIR absorbance of pressed fragment 07-13-38 of the Fg-AMM DC06-09-110
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- absorbance
- Version
- #1 (2017-10-26 10:18:31 UTC+0000)
- Instrument
- Brucker Vertex 70 + Hyperion 3000 – micro-transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 600.0 - 4000.0 $cm^{-1}$
- Spatial observation mode
- single spot
- Name
- fragment 07-13-38 of the Fg-AMM DC06-09-110 pressed on a germanium window
- Origin
- extraterrestrial
- Texture
- compact poor grained
- Thickness
- 15.0 $\pm$ 5.0 ${\mu}m$
- Temperature
- 80.0 $\pm$ 10.0 $^{\circ}C$
References
- Data reference
- Battandier, Manon; Bonal, Lydie (2016): Baseline-corrected and normalized Mid-IR absorbance spectra of fragments of AMMs pressed on diamond or germanium window under vacuum and at 80°C. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20171025_001
