Spectrum preview
Title

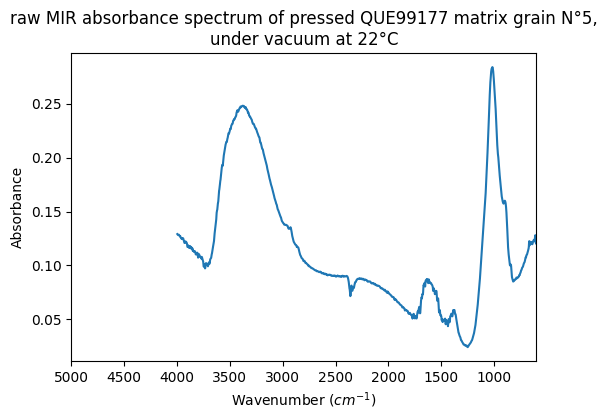

raw MIR absorbance spectrum of pressed QUE99177 matrix grain N°5, under vacuum at 22°C
Database
Experiment type
laboratory measurement
Spectrum type
absorbance
Version
#1 (2017-08-02 11:13:21 UTC+0000)
Instrument parameters
Instrument
Brucker Vertex 70 + Hyperion 3000 – micro-transmission Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
600 - 5000 $cm^{-1}$
Spatial observation mode
single spot
Sample preview
Name
QUE99177 matrix grains (CR Chondrite)
Origin
extraterrestrial
Texture
individual grains
Thickness
15 $\pm$ 5 ${\mu}m$
Temperature
22 $\pm$ 2 $^{\circ}C$
References
Data reference
Bonal, Lydie (2011): MIR absorbance spectra of pressed QUE99177 matrix grains (CR Chondrite) under vacuum at different temperatures. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20170731_002
