- Title

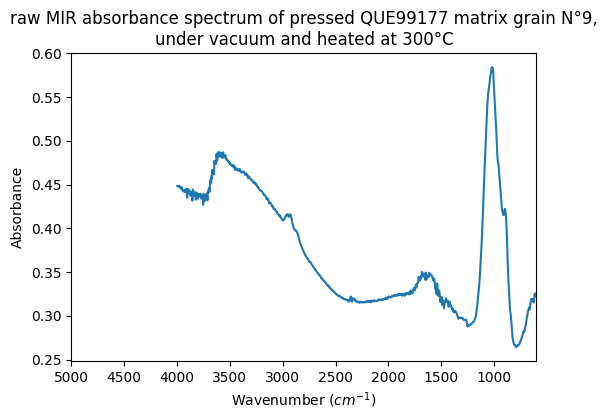

- raw MIR absorbance spectrum of pressed QUE99177 matrix grain N°9, under vacuum and heated at 300°C
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- absorbance
- Version
- #1 (2017-08-02 11:13:21 UTC+0000)
- Instrument
- Brucker Vertex 70 + Hyperion 3000 – micro-transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 600.0 - 5000.0 $cm^{-1}$
- Spatial observation mode
- single spot
- Name
- QUE99177 matrix grains (CR Chondrite) heated at 300°C
- Origin
- extraterrestrial
- Texture
- individual grains
- Thickness
- 15.0 $\pm$ 5.0 ${\mu}m$
- Temperature
- 300.0 $\pm$ 5.0 $^{\circ}C$
References
- Data reference
- Bonal, Lydie (2011): MIR absorbance spectra of pressed QUE99177 matrix grains (CR Chondrite) under vacuum at different temperatures. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20170731_002
- Publications
