Spectrum preview
Title

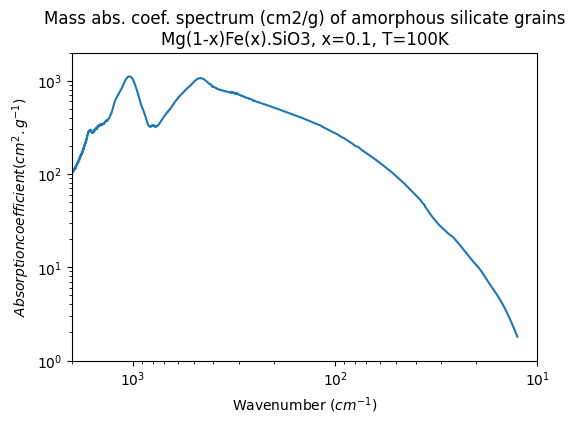

Mass abs. coef. spectrum (cm2/g) of amorphous silicate grains Mg(1-x)Fe(x).SiO3, x=0.1, T=100K
Database
Experiment type
laboratory measurement
Spectrum type
absorption coefficient
Version
#1 (2017-08-23 10:03:38 UTC+0000)
Instrument parameters
Instrument
vertex70v-transmission-MIR
Spectral observation mode
spectrum
Valid spectral range(s)
250.0 - 2000.0 $cm^{-1}$
Spatial observation mode
single spot
Instrument parameters
Instrument
vertex70v-transmission-FIR
Spectral observation mode
spectrum
Valid spectral range(s)
10.0 - 300.0 $cm^{-1}$
Spatial observation mode
single spot
Instrument parameters
Instrument
Brucker125V-transmission-FIR
Spectral observation mode
spectrum
Valid spectral range(s)
10.0 - 40.0 $cm^{-1}$
Spatial observation mode
single spot
Sample preview
Name
Amorphous silicate Mg$_{(1-x)}$Fe$_x$SiO$_3$, x=0.1, HDPE and KBr pellets
Texture
compact
Thickness
2.0 $\pm$ 0.4 $mm$
Temperature
100.0 $\pm$ 2.0 $K$
References
Data reference
Demyk, Karine; Meny, Claude; Lu, Xing-Heng (2015): Mass absorption coefficient spectra (cm2/g) of amorphous silicate Mg(1-x)Fe(x).SiO3, x=0.1, 0.2, 0.3 and 0.4, at 10 to 300 K in the 5 - 1000 µm range. SSHADE/STOPCODA (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_KD_20170822
