- Title

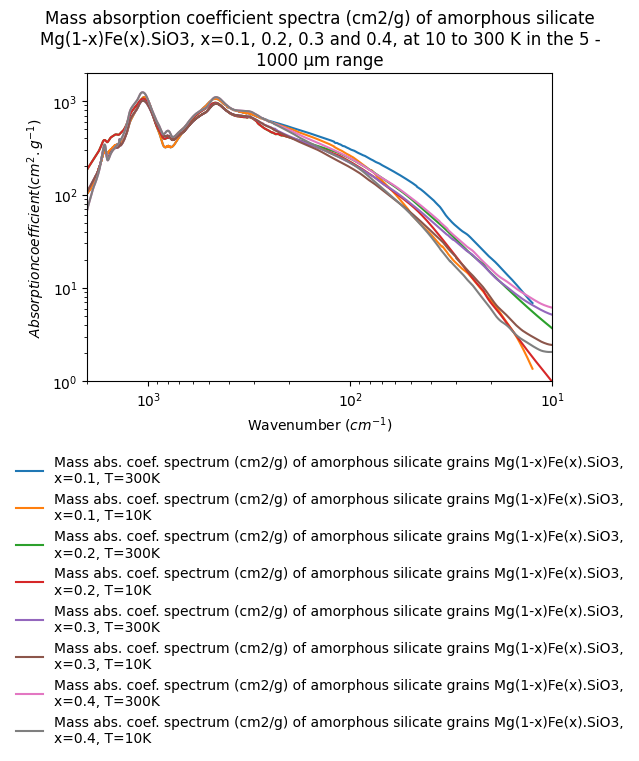

- Mass absorption coefficient spectra (cm2/g) of amorphous silicate Mg(1-x)Fe(x).SiO3, x=0.1, 0.2, 0.3 and 0.4, at 10 to 300 K in the 5 - 1000 µm range
- DOI
- 10.26302/SSHADE/EXPERIMENT_KD_20170822
- Data reference
- Demyk, Karine; Meny, Claude; Lu, Xing-Heng (2015): Mass absorption coefficient spectra (cm2/g) of amorphous silicate Mg(1-x)Fe(x).SiO3, x=0.1, 0.2, 0.3 and 0.4, at 10 to 300 K in the 5 - 1000 µm range. SSHADE/STOPCODA (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_KD_20170822
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description
- Mass absorption coefficient spectra (cm2/g) of amorphous silicate $Mg_{(1-x)}Fe_x.SiO_3$, x=0.1, 0.2, 0.3 and 0.4, at 10 to 300 K in the 5 - 1000 µm range (MIR to sub-mm)
- Number of spectra
- 20
- Variable type(s)
-
- temperature
- Comments
- The grain temperature is varied from 10 K to 300 K.
- Instrument
- vertex70v-transmission-MIR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 250.0 - 2000.0 2.0
- Observation mode
- single spot
- Instrument
- vertex70v-transmission-FIR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- FIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 10.0 - 300.0 1.0
- Observation mode
- single spot
- Instrument
- Brucker125V-transmission-FIR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- FIR, sub-mm
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 10.0 - 40.0 1.0
- Observation mode
- single spot
- Date begin - end
- 2015-04-09 - 2015-04-09
Versions
- Release date
- 2018-01-31 23:51:01 UTC+0000
- Version (Date)
- #2 (2018-01-31 23:51:01 UTC+0000, Updated: 2021-02-05 15:22:28 UTC+0000)
- Older version(s)
