Tl L3 edge XAS transmission of Thallium compounds at 10K | FAME

Experiment

Title: Tl L3 edge XAS transmission of Thallium compounds at 10K

DOI

10.26302/SSHADE/EXPERIMENT_JR_20150621_101

Data reference

Rose, Jérôme; Chaurand, Perrine; Doelsch, Emmanuel (2015): Tl L3 edge XAS transmission of Thallium compounds at 10K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_JR_20150621_101

Publications

Rose et al., 2023, ACS Earth Space Chem., 7, 1848 - 1857

Owner

Database(s)

FAME

Experimentalists

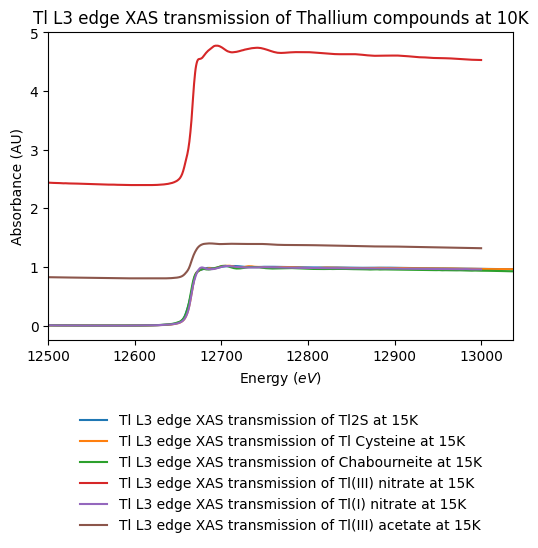

Spectra preview

Experiment type

Type(s): laboratory measurement
Number of spectra: 6
Comments: These data were acquired on the BM30 beamline in the frame of the 30-02-1092 proposal.

Variable parameters

Variable type(s)

sample composition

Location

Laboratory: French Absorption spectroscopy beamline in Material and Environmental science (FAME)

Instrument #1

Instrument: X-ray Absorption Spectroscopy measured in transmission mode
Sample holder: Oxford-ILL orange cryostat

Spectral parameters

Standard medium

unknown

Observation mode

spectrum

Spectral range type(s)

hard X

Valid spectral range(s)

	Min - Max ( $eV$ )	Sampling ( $eV$ )	Resolution ( $eV$ )	Position accuracy ( $eV$ )	Absorption edge
#1	12500.0 - 13037.0		0.649		$Tl$ (L3: 12.6575 $keV$ )

Comments

The resolution in the above table is the resolution given by the monochromator. The energy was calibrated by measuring the absorption edge of a reference: Se metallic foil (mesh) (first maximum of the derivative set at 12658 eV).

Angular parameters

Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).

Observation geometry: direct
Observation mode: fixed angles

Spatial parameters

Observation mode: averaged

History

Date begin - end: 2015-06-17 - 2015-06-23

Versions

Release date: 2025-05-05 13:17:15+0000 UTC
Version (Date): #1 (2025-05-05 13:17:15+0000 UTC, Updated: 2025-05-05 13:17:15+0000 UTC)
