Experiment
Title

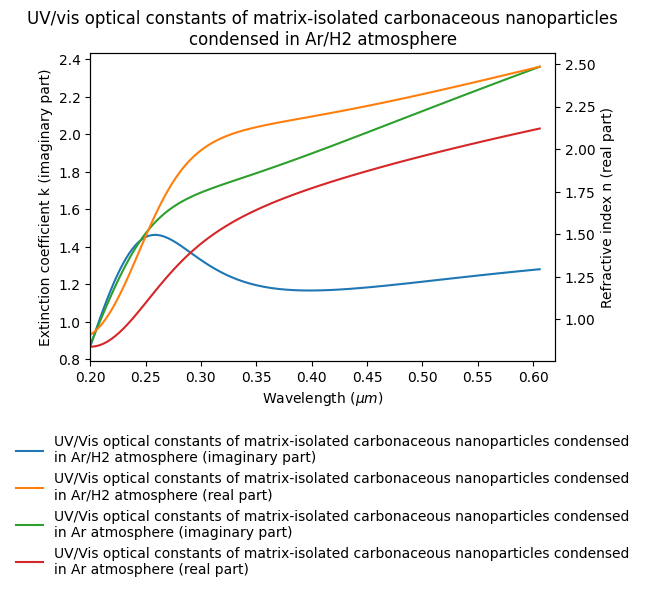

UV/vis optical constants of matrix-isolated carbonaceous nanoparticles condensed in Ar/H2 atmosphere
Data reference
Schnaiter, Martin; Mutschke, Harald; Dorschner, Johann; Henning, Thomas (1997): UV/vis optical constants of matrix-isolated carbonaceous nanoparticles condensed in Ar/H2 atmosphere. Version 1. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data.
Publications
Type(s)
laboratory measurement
Variable(s)
sample composition
Number of spectra
2
Instrument
Specord S5 – transmission UV/vis
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
UV, Vis
Valid spectral range(s)
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge
#1 0.2 - 0.62 0.0024
Illumination
Type of polarization
no
Observation
Type of polarization
no
Observation mode
single spot
Spatial resolution
5.0 $mm$
Variable type(s)
  • sample composition
Date begin
1997-01-01

Versions

Release date
2019-08-15 07:19:38 UTC+0000
Version (Date)
#1 (2018-03-19 16:41:34 UTC+0000, Updated: 2019-08-15 09:46:04 UTC+0000)
