- DOI
- 10.26302/SSHADE/EXPERIMENT_GM_20190902_001
- Data reference

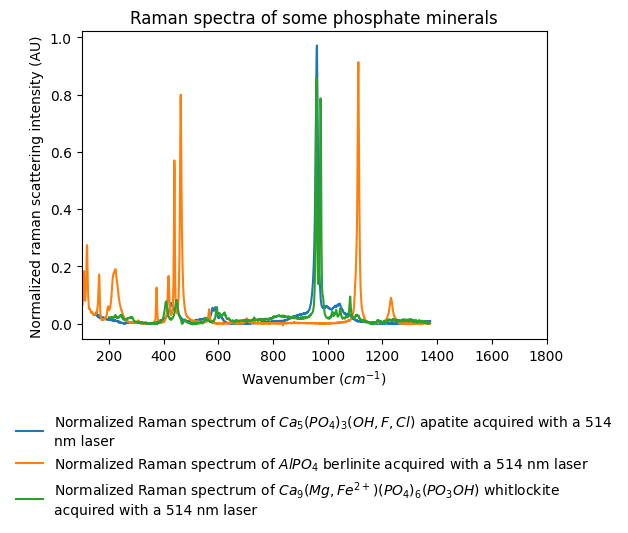

- Montagnac, Gilles (2000): Raman spectra of some phosphate minerals. SSHADE/REAP (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_GM_20190902_001
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Number of spectra
- 4
- Variable type(s)
-
- sample composition
- Instrument
- DILOR XY micro-Raman - 514 nm
- Standard medium
- air
- Observation mode
- spectrum
- Spectral range type(s)
- MIR, FIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 100.0 - 1800.0 0.8 2.5 0.3 - Filters
-
Type Center/Edge ($cm^{-1}$) Width ($cm^{-1}$) Place #1 Edge filter - Comments
- Edge filter: 514.5 nm transition width 100 cm-1
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- directional-conical
- Observation mode
- fixed angles
- Observation mode
- single spot
- Objective type
- x100
- Spatial resolution
- 1.0 ${\mu}m$
- Comments
- spot of 1 µm in diameter
- Instrument
- Micro-Raman LabRam HR800 - 532 nm
- Standard medium
- air
- Observation mode
- spectrum
- Spectral range type(s)
- MIR, FIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 100.0 - 1800.0 1.7 4.0 0.3 - Filters
-
Type Center/Edge ($cm^{-1}$) Width ($cm^{-1}$) Place #1 Edge filter - Comments
- Edge filter: 632.8 nm transition width 100 cm-1
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- directional-conical
- Observation mode
- fixed angles
- Observation mode
- single spot
- Objective type
- x100
- Spatial resolution
- 1.0 ${\mu}m$
- Comments
- spot of 1 µm in diameter
- Date begin
- 2000-01-01
Versions
- Release date
- 2019-09-02 15:12:35 UTC+0000
- Version (Date)
- #1 (2019-09-02 15:12:35 UTC+0000, Updated: 2019-09-03 07:45:57 UTC+0000)
