- Title

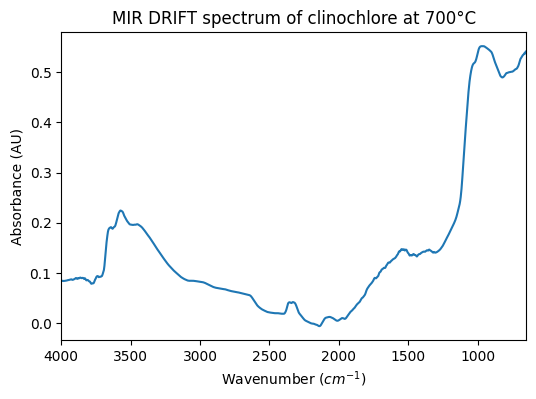

- MIR DRIFT spectrum of clinochlore at 700°C
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- absorbance
- Version
- #1 (2017-09-08 14:21:23 UTC+0000)
- Instrument
- FTIR-DRIFT-MIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 650.0 - 4000.0 $cm^{-1}$
- Observation geometry
- hemispherical :
- Angle observation mode
- N/A
- Spatial observation mode
- single spot
- Name
- ChlMal chlorite mixed with diamond powder (15% chlorite) at 25C
- Texture
- loose granular
- Thickness
- 0.5 $\pm$ 0.01 $cm$
- Temperature
- 700.0 $\pm$ 10.0 $^{\circ}C$
- Fluid
-
- N2 5.0 AirProducts , 100.0 $\pm$ 0.001%
References
- Data reference
- Lempart, Malgorzata; Derkowski, Arkadiusz (2015): Mid-infrared diffuse reflectance experiment with chlorite (clinochlore) heated in-situ from 25 to 860°C. SSHADE/LSD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_GL_20150103_1
