Experiment
Title

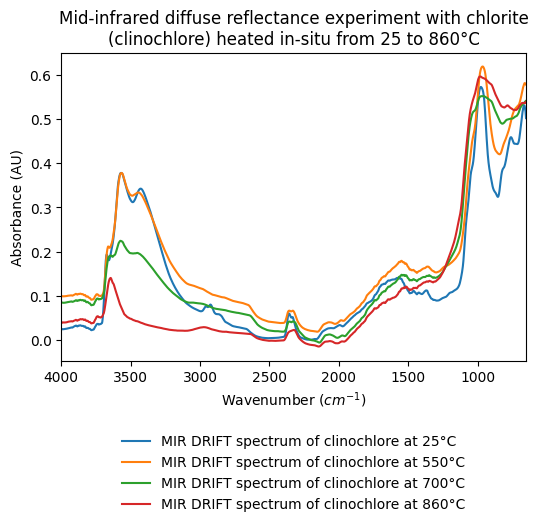

Mid-infrared diffuse reflectance experiment with chlorite (clinochlore) heated in-situ from 25 to 860°C
Data reference
Lempart, Malgorzata; Derkowski, Arkadiusz (2015): Mid-infrared diffuse reflectance experiment with chlorite (clinochlore) heated in-situ from 25 to 860°C. Version 1. SSHADE/LSD (OSUG Data Center). Dataset/Spectral Data.
Type(s)
laboratory measurement
Variable(s)
temperature
Number of spectra
4
Instrument
FTIR-DRIFT-MIR
Sample holder
High temperature reaction chamber for Prying Mantis (TM) DRIFT accessory fitted with ZnSe windows
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
MIR
Valid spectral range(s)
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge
#1 650.0 - 4000.0 2.0 4.0
Observation geometry
hemispherical
Observation mode
N/A
Observation mode
single spot
Variable type(s)
  • temperature
Date begin - end
2015-01-03 - 2015-01-03

Versions

Release date
2018-01-31 23:51:01 UTC+0000
Version (Date)
#1 (2017-09-08 14:21:23 UTC+0000, Updated: 2019-07-19 13:49:20 UTC+0000)
