Spectrum preview
Title

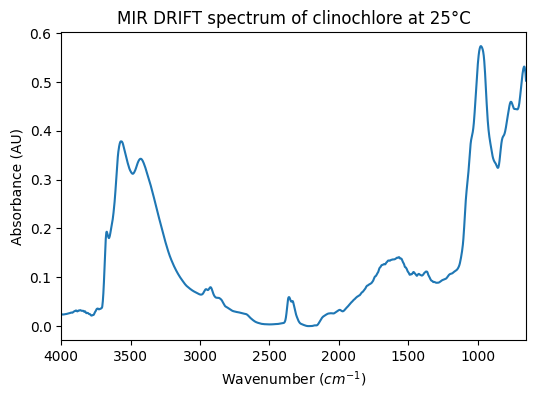

MIR DRIFT spectrum of clinochlore at 25°C
Database
Experiment type
laboratory measurement
Spectrum type
absorbance
Version
#1 (2017-09-08 14:21:23 UTC+0000)
Instrument parameters
Instrument
FTIR-DRIFT-MIR
Spectral observation mode
spectrum
Valid spectral range(s)
650.0 - 4000.0 $cm^{-1}$
Observation geometry
hemispherical :
Angle observation mode
N/A
Spatial observation mode
single spot
Sample preview
Name
ChlMal chlorite mixed with diamond powder (15% chlorite) at 25C
Texture
loose granular
Thickness
0.5 $\pm$ 0.01 $cm$
Temperature
25.0 $\pm$ 3.0 $^{\circ}C$
Fluid
References
Data reference
Lempart, Malgorzata; Derkowski, Arkadiusz (2015): Mid-infrared diffuse reflectance experiment with chlorite (clinochlore) heated in-situ from 25 to 860°C. SSHADE/LSD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_GL_20150103_1
