Experiment
Title

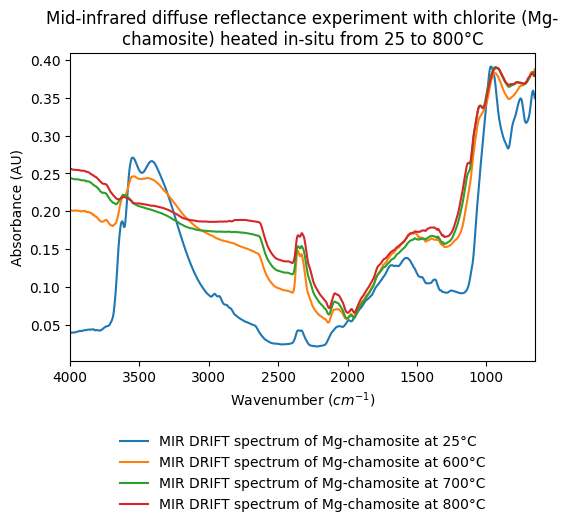

Mid-infrared diffuse reflectance experiment with chlorite (Mg-chamosite) heated in-situ from 25 to 800°C
DOI
10.26302/SSHADE/EXPERIMENT_GL_20150101_1
Data reference
Lempart, Malgorzata; Derkowski, Arkadiusz (2015): Mid-infrared diffuse reflectance experiment with chlorite (Mg-chamosite) heated in-situ from 25 to 800°C. SSHADE/LSD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_GL_20150101_1
Type(s)
laboratory measurement
Number of spectra
4
Variable type(s)
  • temperature
Instrument
FTIR-DRIFT-MIR
Sample holder
High temperature reaction chamber for Prying Mantis (TM) DRIFT accessory fitted with ZnSe windows
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
MIR
Valid spectral range(s)
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge
#1 650.0 - 4000.0 2.0 4.0
Observation geometry
hemispherical
Observation mode
N/A
Observation mode
single spot
Date begin - end
2015-01-01 - 2015-01-01

Versions

Release date
2018-01-31 23:51:01 UTC+0000
Version (Date)
#1 (2018-01-31 23:51:01 UTC+0000, Updated: 2019-07-19 13:21:14 UTC+0000)
