Mn K edge XAS transmission of Mn metallic foil reference at ambient conditions | FAME | SSHADE

Experiment

Title: Mn K edge XAS transmission of Mn metallic foil reference at ambient conditions

DOI: 10.26302/SSHADE/EXPERIMENT_DT_20180313_001

Database(s)

Experimentalists

Olivier Proux

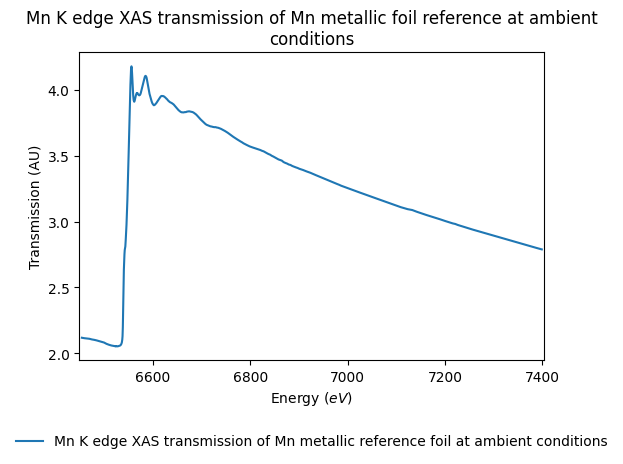

Spectra preview

Experiment type

Type(s): laboratory measurement
Number of spectra: 1

Variable parameters

Variable type(s)

no

Laboratory: French Absorption spectroscopy beamline in Material and Environmental science (FAME)

Instrument: X-ray Absorption Spectroscopy measured in transmission mode

Spectral parameters

Standard medium

unknown

Observation mode

spectrum

Spectral range type(s)

hard X

Valid spectral range(s)

	Min - Max ($eV$)	Sampling ($eV$)	Resolution ($eV$)	Position accuracy ($eV$)	Absorption edge
#1	6449.0 - 7404.0		0.34		$Mn$ (K: 6.539 $keV$)

Comments

The resolution in the above table is the resolution given by the monochromator. The energy was calibrated on the spectrum itself: by definition, th first maximum of the derivative was set at 6539 eV.

Spatial parameters

Observation mode: single spot
