Spectrum preview
Title

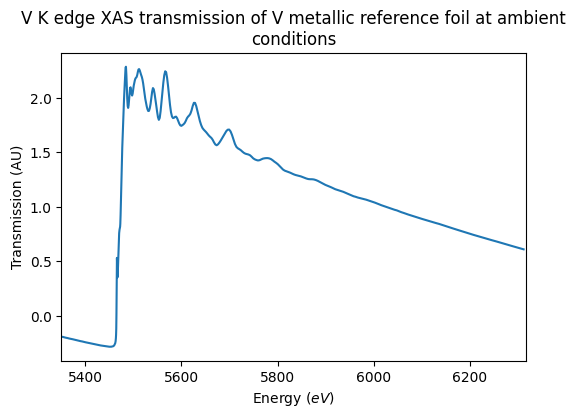

V K edge XAS transmission of V metallic reference foil at ambient conditions
Database
Spectrum type
transmission
Version
#1 (2018-04-04 14:39:30)

You can paste the data VOTable URL directly into a VO-compliant software, ie. : (limited support)

-or-

Use SAMP protocol over TLS:

Notice : This requires SAMP TLS Hub to be launched on your computer. Right-click and save the file, then launch it with the following command :

java -jar tlshub.jar

Instrument parameters
Instrument
BM30B transmission
Valid spectral range(s)
5350.0 - 6317.0 eV
Observation mode
single spot
Sample preview
Name
V metallic foil
Origin
commercial
Texture
compact
Thickness
0.005 $mm$
Temperature
293.0 $\pm$ 2.0 $K$
Pressure
1.0 $bar$
