Experiment
Title

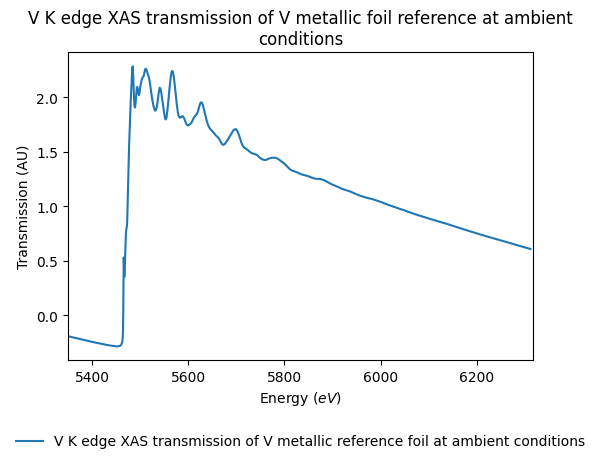

V K edge XAS transmission of V metallic foil reference at ambient conditions
DOI
10.26302/SSHADE/EXPERIMENT_DT_20180117_007
Data reference
Proux, Olivier (2018): V K edge XAS transmission of V metallic foil reference at ambient conditions. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_DT_20180117_007
Database(s)
Experimentalists
Type(s)
laboratory measurement
Number of spectra
1
Variable type(s)
  • no
Instrument
X-ray Absorption Spectroscopy measured in transmission mode
Standard medium
unknown
Observation mode
spectrum
Spectral range type(s)
hard X
Valid spectral range(s)
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge
#1 5350.0 - 6317.0 0.28 $V$ (K: 5.4651 $keV$)
Comments
The resolution in the above table is the resolution given by the monochromator. The energy was calibrated on the spectrum itself: by definition, th first maximum of the derivative was set at 5465 eV.
Observation mode
single spot
Date begin
2018-04-04

Versions

Release date
2018-01-31 23:51:01 UTC+0000
Version (Date)
#1 (2018-01-17 17:27:52 UTC+0000, Updated: 2018-11-20 14:23:23 UTC+0000)
