Title

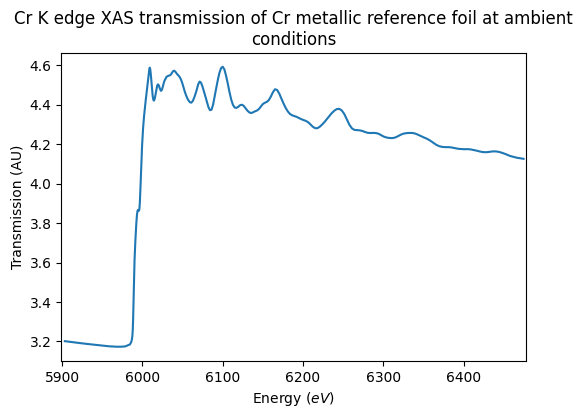

Cr K edge XAS transmission of Cr metallic reference foil at ambient conditions
Database
Experiment type
laboratory measurement
Spectrum type
transmission
Version
#1 (2018-01-17 14:05:04 UTC+0000)
Instrument parameters
Instrument
X-ray Absorption Spectroscopy measured in transmission mode
Spectral observation mode
spectrum
Valid spectral range(s)
5899.000133443276 - 6478.0001465410305 $eV$
Spatial observation mode
single spot
Sample preview
Name
Cr metallic foil
Origin
commercial
Texture
compact
Thickness
0.005 $mm$
Temperature
293.0 $\pm$ 2.0 $K$
References
Data reference
Proux, Olivier (2004): Cr K edge XAS transmission of Cr metallic foil reference at ambient conditions. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_DT_20180117_001
