Experiment
Title

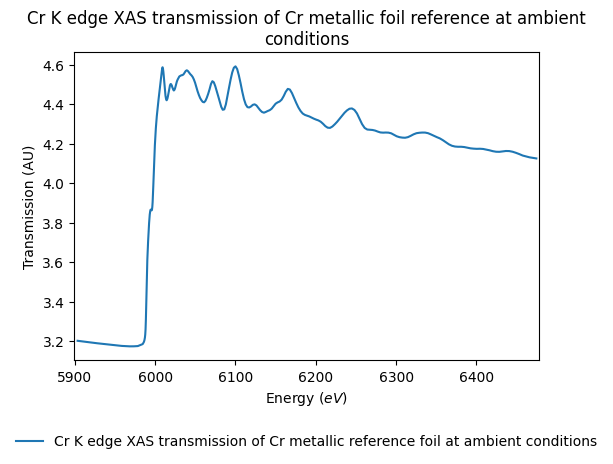

Cr K edge XAS transmission of Cr metallic foil reference at ambient conditions
Database
Experimentalists
Type(s)
laboratory
Variable(s)
no
Instrument
BM30B transmission
Standard medium
unknown
Spectral range type(s)
hard X
Valid spectral range(s)
Min - Max (eV) Sampling (eV) Resolution (eV) Position accuracy (eV) Absorption edge
#1 5899.0 - 6478.0 0.3 $Cr$ (K: $eV$)
Comments
The energy was calibrated on the spectrum itself: by definition, th first maximum of the derivative was set at 5989 eV.
Observation mode
single spot
Date begin
2004-07-15
