Experiment
Title

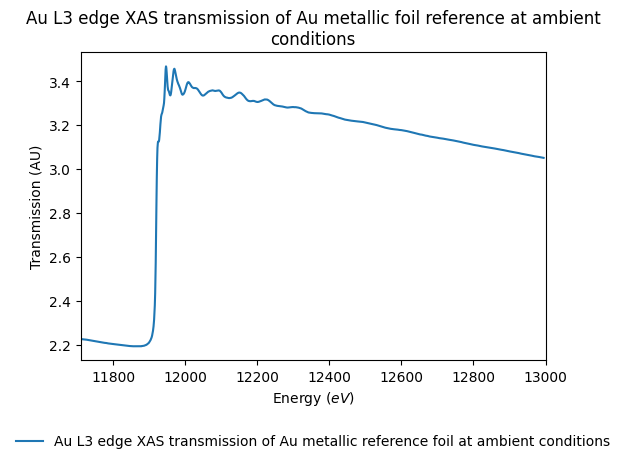

Au L3 edge XAS transmission of Au metallic foil reference at ambient conditions
Reference
Proux, Olivier (2003): Au L3 edge XAS transmission of Au metallic foil reference at ambient conditions. Version 1. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data.
Database
Experimentalists
Type(s)
laboratory
Variable(s)
no
Number of spectra
1
Instrument
BM30B transmission
Standard medium
unknown
Spectral range type(s)
hard X
Valid spectral range(s)
Min - Max ($eV$) Sampling ($eV$) Resolution ($eV$) Position accuracy ($eV$) Absorption edge
#1 11710.0 - 13000.0 0.61 $Au$ (L3: $eV$)
Comments
The resolution in the above table is the resolution given by the monochromator. The energy was calibrated on the spectrum itself: by definition, th first maximum of the derivative was set at 11919 eV.
Observation mode
single spot
Date begin
2003-11-06
